HD3P1E Nidec | 3 hp 3600 RPM 182T Frame 208-230/460V TEFC Nidec Electric Motor
HD3P1E Nidec | 3 hp 3600 RPM 182T Frame 208-230/460V TEFC Nidec Electric Motor
HD3P1E Nidec | 3 hp 3600 RPM 182T Frame 208-230/460V TEFC Nidec Electric Motor
HD3P1E Nidec | 3 hp 3600 RPM 182T Frame 208-230/460V TEFC Nidec Electric Motor

Nidec

HD3P1E Nidec | 3 hp 3600 RPM 182T Frame 208-230/460V TEFC Nidec Electric Motor

(No reviews) Write a Review
$526.70
$448.44
SKU HD3P1E
UPC 7.86E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 182T
Enclosure TEFC
Amperage 8.2/4.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 3 hp 3600 RPM, 8.2/4.1 amps 208-230/460 Volts Three Phase Motor
  • NEMA 182T frame Keyed Shaft 1-1/8" x 2 3/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation

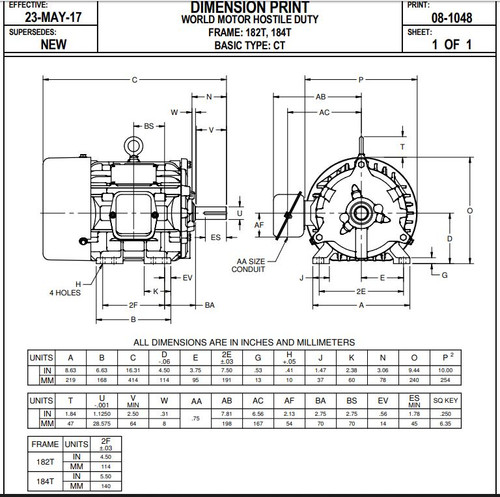

  • "C" Dimension = 16.3"
  • 1 Year Manufacture Warranty

Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty.  40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Model GF01, Replaces H3P1D

Specifications
Voltage 208/230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 182T
Enclosure TEFC
Amperage 8.2/4.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
