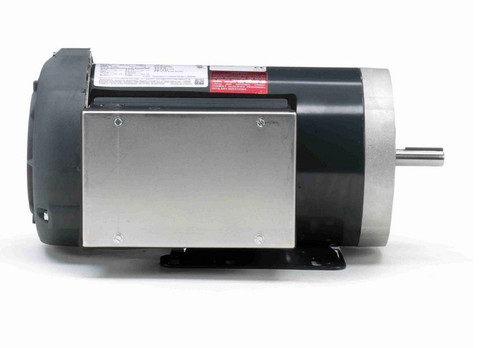

MD316 Marathon 3 hp 3600 RPM 56C Frame TEFC 208-230V Marathon Electric Motor

SKU:
MD316
Weight:
51.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $844.00
Now: $767.30
  • 3 hp 3600 RPM, 13.1/11.8 amps 208-230 Volts 60hz. Capacitor Start Capacitor Run Motor
  • NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = None
  • Removable Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. 056B34F5328
