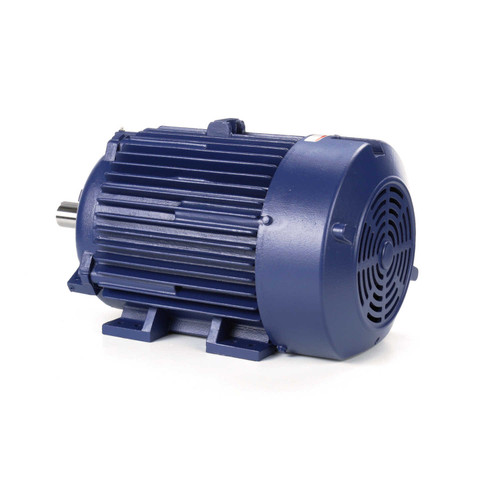

E564 Marathon 30 hp 1800 RPM 286T 230/460V TEFC Explosion Proof Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
E564 Marathon 30 hp 1800 RPM 286T 230/460V TEFC Explosion Proof Marathon Electric Motor
$5,563.70
$4,528.47
SKU
ME564
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
30 HP
RPM
1800
Phase
Three Phase
Frame
286T
Enclosure
TEFC
Hertz
60 Hz
Amperage
73.0/36.5 Amps
Service Factor
1.15
Insulation Class
Class F
- 30 hp 1800 RPM, 73.0/36.5 amps 230/460 Volts 60hz. Three Phase Motor

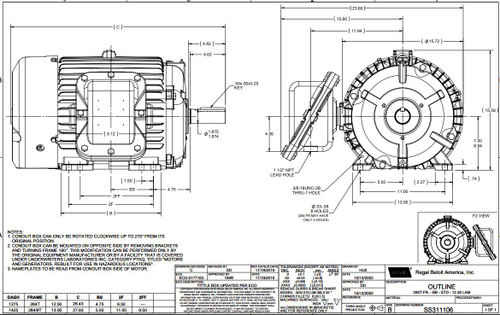

- NEMA 286T Frame Keyed Shaft 1 7/8 " Diameter x 4 5/8"
- Explosion Proof: Class 1, Group C & D; Class II, Group F & G
- Service Factor: 1.15, Class F Insulation
- Overload Protection: Normally closed thermostats (must be connected to control circuit)
- Meets temperature code T3B, Shaft slinger
- TEFC - Explosion Proof Fan cooled
- 1 Year Manufacture Warranty
Explosion Proof for hazardous locations. Underwrites Laboratories and Canadian Standards Association Listed. Explosion proof conduit box included at no extra cost. 1 year manufacture warranty.
286TTGN6537, Replaces Leeson 825099.00, Dayton 39P285
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 30 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 286T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 73.0/36.5 Amps |
| Service Factor | 1.15 |
| Insulation Class | Class F |
Related Products
sale
Add to Cart
The item has been added
GT1031A Marathon 30 hp 1800 RPM 286T Frame 230/460V TEFC Marathon Electric Motor
30 hp 1800 RPM, 72.5/36.5 amps 230/460 Volts 60hz. Three Phase Motor
NEMA 286T Frame Keyed Shaft 1 7/8 " Diameter x 4 5/8"
Service Factor: 1.15 - overload protection = None
Reversible - Rigid Base...
$2,554.27
$2,079.20
sale
Add to Cart
The item has been added
U005A Marathon 5 hp 1800 RPM 184T 230/460V TEFC Explosion Proof Marathon Electric Motor
5 hp 1800 RPM, 12.4/6.2 amps 230/460 Volts 60hz. Three Phase Motor
NEMA 184T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
Explosion Proof: Class 1, Group D; Class II, Group F & G
Service Factor: 1...
$1,316.98
$1,144.25
sale
Add to Cart
The item has been added

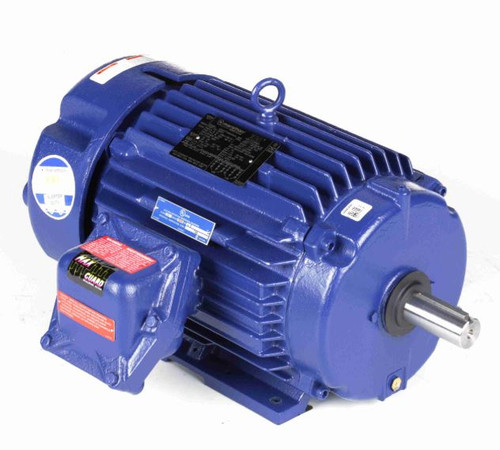

U006C Marathon 7.5 hp 1800 RPM 213T 230/460V TEFC Explosion Proof Marathon Electric Motor
