GT0069 Marathon 30 hp 3600 RPM 284TS Frame 230/460V Open Drip Marathon Electric Motor
GT0069 Marathon 30 hp 3600 RPM 284TS Frame 230/460V Open Drip Marathon Electric Motor
GT0069 Marathon 30 hp 3600 RPM 284TS Frame 230/460V Open Drip Marathon Electric Motor
GT0069 Marathon 30 hp 3600 RPM 284TS Frame 230/460V Open Drip Marathon Electric Motor
GT0069 Marathon 30 hp 3600 RPM 284TS Frame 230/460V Open Drip Marathon Electric Motor
GT0069 Marathon 30 hp 3600 RPM 284TS Frame 230/460V Open Drip Marathon Electric Motor

Marathon

GT0069 Marathon 30 hp 3600 RPM 284TS Frame 230/460V Open Drip Marathon Electric Motor

(No reviews) Write a Review
$2,190.87
$1,875.65
SKU MGT0069
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 30 HP
RPM 3600
Phase Three Phase
Frame 284TS
Enclosure ODP
Hertz 60 Hz
Amperage 71.5/35.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 30 hp 3600 RPM, 71.5/35.5 amps 230/460 Volts 60hz. Three Phase Motor

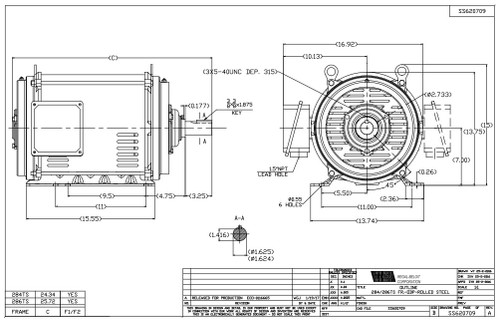

  • NEMA 284TS Frame Keyed Shaft 1 5/8 " Diameter x 3 1/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

284TSTDBD6001 Replaces Leeson 170036.60, 199707.00, B199707.00; Dayton 454X60

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 30 HP
RPM 3600
Phase Three Phase
Frame 284TS
Enclosure ODP
Hertz 60 Hz
Amperage 71.5/35.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
