3J10070-1E | Waterway Iron Might Pump 230 Volt

Waterway Iron Might Pump 230 Volt (Model 3J10070-1E)

The Waterway Iron Might Pump 3J10070-1E is a reliable replacement for the Waterway 3410020-1E pump, designed primarily for ponds, koi ponds, and fountains. It features a newly designed, totally enclosed non-vented motor optimized for continuous 24-hour circulation.

Key Specifications

• Voltage: 230 Volt, 60/50 Hz
• Amperage: 0.70 Amps
• RPM: 1725
• Frame / Diameter: 48-Frame
• Flow Rate: 40 GPM
• Design: Side Discharge for Optimum Flow

Product Features & Fitment

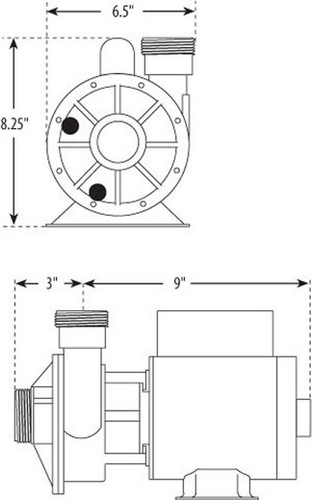

This pump includes two 400-4060 unions compatible with 1.5" PVC pipe for straightforward plumbing connections. It measures 12.5" in overall length and 8.5" in height. The pump is not self-priming and requires the pump head to be positioned below the water level for proper operation. No power cord or switch is supplied. An optional debris basket (Part No. 310-5400) is available separately.

Important: This pump does not comply with California’s Title 20 efficiency regulations and is not approved for pool filtration use in the State of California.

Cross Reference

• the Waterway 3410020-1E

Warranty

• Instructions
