D40P3E Nidec | 40 hp 1200 RPM 364T Frame 230/460V ODP Electric Motor Nid

D40P3E Nidec | 40 hp 1200 RPM 364T Frame 230/460V ODP Electric Motor Nid

SKU:
D40P3E
Availability:
Subject to availability
Weight:
580.00 LBS
Width:
48.00 (in)
Height:
36.00 (in)
Depth:
24.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
230/460V
Horsepower:
40 HP
RPM:
1200
Phase:
Three Phase
Frame:
364T
Enclosure:
ODP
Hertz:
50/60 Hz
Amperage:
92.0/46.0 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
Rigid Base
Duty:
Continuous Duty
Was: $5,060.00
Now: $4,518.01
Adding to cart… The item has been added
  • 40 hp 1200 RPM, 92.0/46.0 amps 230/460V, 50/60hz. Three Phase
  • NEMA 364T Frame Keyed Shaft 2 3/8" Diameter x 5 7/8"
  • ODP; Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation

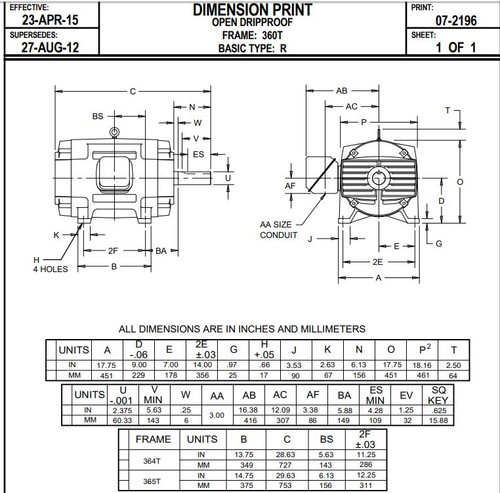

  • "C" Dimension 28.7"
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model DC72

!
