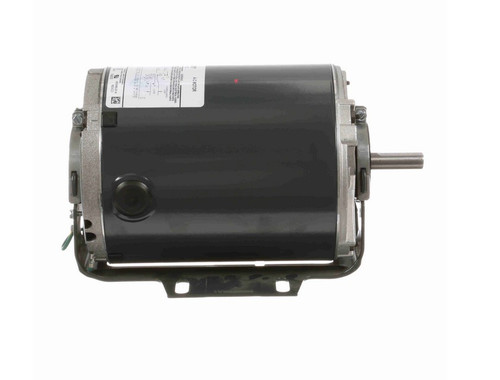

4322 Marathon 1/6 hp (2 speed) 115V 1800/1200 RPM ODP 48 Frame Resilient Base Blower Motor

4322 Marathon 1/6 hp (2 speed) 115V 1800/1200 RPM ODP 48 Frame Resilient Base Blower Motor

This Marathon blower motor is designed for efficient air circulation in HVAC systems and other building ventilation applications. It serves as a reliable replacement motor with dual-speed operation for versatile performance.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1800/1200
• Voltage: 115 V, 60 Hz
• Amperage: 3.4/1.9 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: 1 1/2" length x 1/2" diameter, flat shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient base mount for vibration reduction and ease of installation. It is split phase with a service factor of 1.35 and uses Class B insulation. The shaft orientation can be installed vertically or horizontally to suit various blower configurations. Thermal protection is not included.

Warranty

1 Year Manufacturer Warranty
