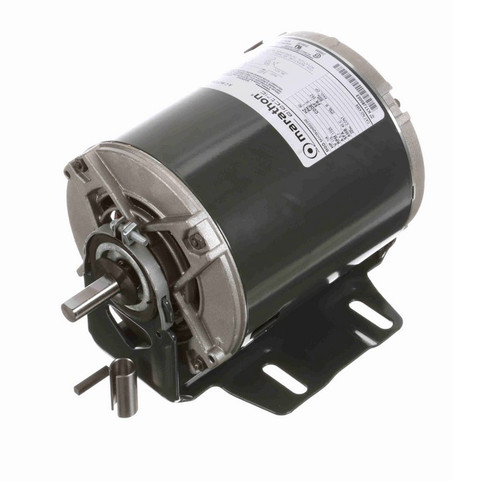

4359 Marathon 1/4 hp (1 speed) 115V 1800 RPM ODP 56Z Frame Resilient Base Blower Motor

4359 Marathon 1/4 hp (1 speed) 115V 1800 RPM ODP 56Z Frame Resilient Base Blower Motor

This Marathon blower motor is a 1/4 horsepower, single-speed motor designed for HVAC and industrial air-moving applications. It replaces standard blower motors with a durable open drip proof (ODP) enclosure and is suitable for both vertical and horizontal shaft mounting.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1800
• Voltage: 115V
• Amperage: 5.7 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56Z
• Shaft Dimensions: 1 1/2" length x 1/2" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and is equipped with Class B insulation for reliable operation. It operates on split phase power and does not include thermal protection. The motor shaft is flat and designed to accommodate blower applications requiring either vertical or horizontal shaft orientation.

Warranty

1 Year Manufacturer Warranty
