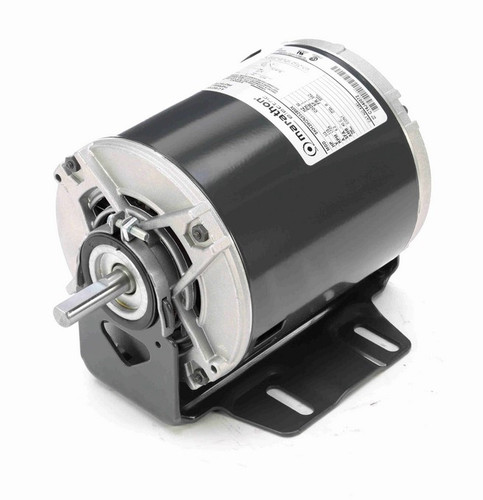

4381 Marathon 1/3 hp (1 speed) 115V 1800 RPM ODP 56Z Frame Resilient Base Blower Motor

4381 Marathon 1/3 hp (1 speed) 115V 1800 RPM ODP 56Z Frame Resilient Base Blower Motor

This Marathon blower motor is a 1/3 horsepower, single-speed motor designed for air movement applications inside buildings. It replaces Century model 807L and Dayton 5DUT5, making it a reliable choice for HVAC and blower system replacements.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115 V, 60 Hz
• Amperage: 6.2 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56Z Frame
• Shaft Dimensions: 1 1/2" length x 1/2" diameter, flat shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and includes automatic thermal protection for enhanced durability. It is designed for flexible shaft orientation, allowing vertical or horizontal installation to suit various blower configurations. The motor’s Class B insulation and split-phase design ensure reliable performance in standard HVAC environments.

Cross Reference

• Century 807L
• Replaces Dayton 5DUT5

Warranty

1 Year Manufacturer Warranty
