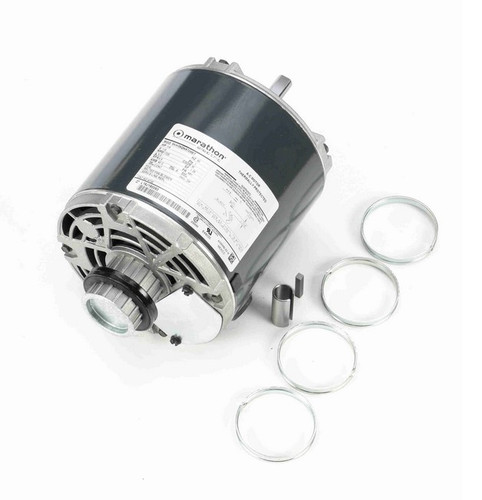

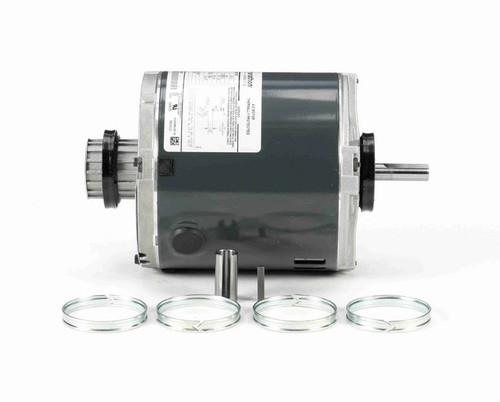

4732 Marathon 1/2 hp (1 speed) 115V 1800 RPM ODP 48Y Frame Split Phase Resilient Base Motor

4732 Marathon 1/2 hp (1 speed) 115V 1800 RPM ODP 48Y Frame Split Phase Resilient Base Motor

This Marathon 1/2 horsepower motor is designed for blower applications, providing reliable air movement inside buildings. It replaces standard split phase motors and is suitable for both vertical and horizontal shaft orientations.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115V, 60 Hz
• Amperage: 7.9 amps
• Enclosure: Open Drip-Proof (ODP)
• Frame / Diameter: NEMA 48Y Frame
• Shaft Dimensions: 1 1/2" length x 1/2" diameter, flat shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient base for stable mounting and includes an adjustable ring mount for flexible installation. It is equipped with thermal protection (automatic reset) and Class B insulation for enhanced durability in blower motor applications.

Warranty

1 Year Manufacturer Warranty
