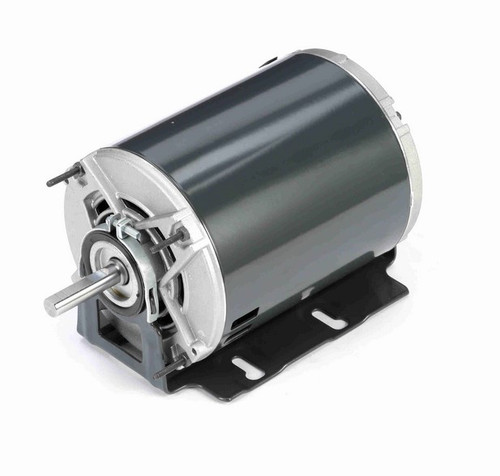

B307 Marathon 1/2 hp (1 speed) 115V 1800 RPM ODP 48Y Frame Resilient Base Blower Motor

B307 Marathon 1/2 hp (1 speed) 115V 1800 RPM ODP 48Y Frame Resilient Base Blower Motor

This Marathon blower motor is designed for reliable air movement in HVAC and industrial applications. It replaces standard blower motors requiring a 1/2 hp, 115V, single-speed motor with an open drip proof (ODP) enclosure.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115V, 60 Hz
• Amperage: 7.5 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48Y Frame

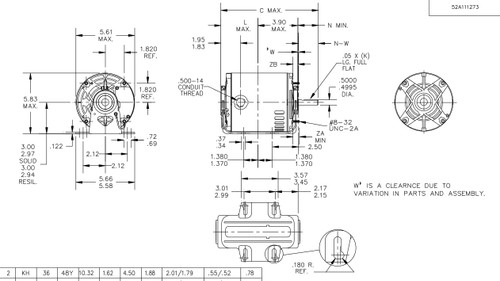

• Shaft Dimensions: 2" length x 1/2" diameter, flat shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for vibration reduction and ease of mounting. It includes thermal protection with an automatic reset and is designed for split phase operation. The shaft orientation can be installed vertically or horizontally to fit various blower configurations.

Warranty

1 Year Manufacturer Warranty
