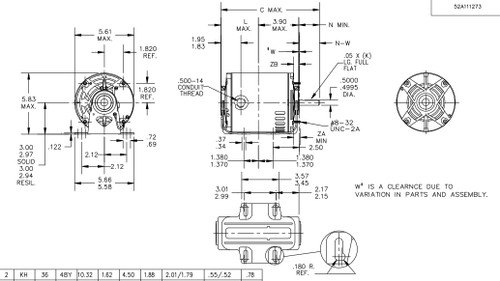

B305 Marathon 1/3 hp (1 speed) 115V 1800 RPM ODP 48Y Frame Resilient Base Blower Motor

B305 Marathon 1/3 hp 115V 1800 RPM ODP 48Y Frame Resilient Base Blower Motor

This Marathon blower motor is designed for reliable air movement applications in HVAC systems and building ventilation. It serves as a direct replacement for similar 1/3 horsepower motors requiring a resilient base mount and open drip proof enclosure.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115V, 60 Hz
• Amperage: 5.5 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48Y Frame
• Shaft Dimensions: 1 7/8" length x 1/2" diameter, flat shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and includes thermal auto-reset protection to prevent overheating. It operates on split phase power with a service factor of 1.35, ensuring durability under varying loads. The motor’s shaft orientation can be installed vertically or horizontally to accommodate different blower configurations.

Warranty

1 Year Manufacturer Warranty
