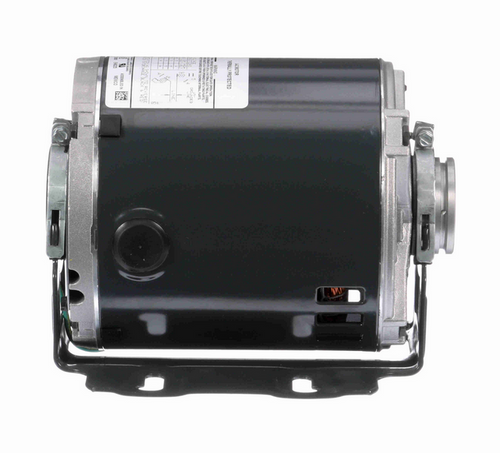

4805 Marathon 1/3 hp Carbonator Pump Motor 1800 RPM 100-120/200-240V, 48Y ODP Frame (resilient base)

4805 Marathon 1/3 hp Carbonator Pump Motor 1800 RPM 100-120/200-240V, 48Y ODP Frame (resilient base)

This Marathon 1/3 hp carbonator pump motor is a direct replacement designed for liquid transfer pumps, vending machine pumps, and other hub-mounted pump applications. It replaces Marathon models HG681 and 5KH32GNB814X, providing reliable performance with a split-phase design and versatile voltage compatibility.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800 / 1500
• Voltage: 100-120 / 200-240 V
• Amperage: 5.6 / 2.8 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48Y
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and includes a special short, slotted shaft designed for close-coupling to carbonator pumps. The extended hub allows for direct mounting in hub-mounted pump applications. It operates at both 50 and 60 Hz frequencies and includes automatic overload protection for enhanced durability.

Cross Reference

• Marathon HG681, 5KH32GNB814X

Warranty

1 Year Manufacturer Warranty
