sale
Marathon

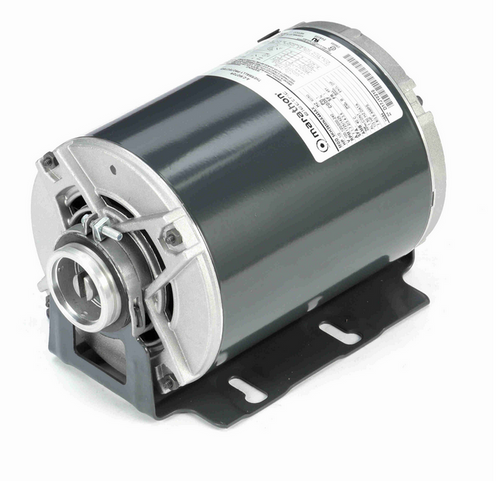

H684 Marathon 1/2 hp Carbonator Pump Motor 1800 RPM 100-120/200-240V, 48Y ODP Frame (resilient base)
(No reviews)
Write a Review
Write a Review
Marathon
H684 Marathon 1/2 hp Carbonator Pump Motor 1800 RPM 100-120/200-240V, 48Y ODP Frame (resilient base)
$376.97
$326.26
SKU
H684
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
100/120/200/240V
Horsepower
1/2 HP
RPM
1800
Frame
48Y
Enclosure
ODP
Amperage
7.2/3.6 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class B
H684 Marathon 1/2 hp Carbonator Pump Motor 1800 RPM 100-120/200-240V, 48Y ODP Frame (resilient base)
This Marathon 1/2 horsepower carbonator pump motor is designed as a direct replacement for carbonator pumps used in liquid transfer, vending machines, and other hub-mounted pump applications. It features a resilient base and a specialized shaft for efficient coupling and mounting.
Key Specifications
- Horsepower: 1/2 hp
- RPM: 1800
- Voltage: 100-120/200-240 V
- Amperage: 7.2/3.6 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 48Y
- Shaft Dimensions: Short, slotted shaft with extended hub
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor includes a resilient base for stable installation and features a special shaft design with a short, slotted shaft for close coupling to carbonator pumps, along with an extended hub for direct mounting. It operates with a split-phase design and incorporates automatic overload protection for reliable performance.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 100/120/200/240V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Frame | 48Y |
| Enclosure | ODP |
| Amperage | 7.2/3.6 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class B |
Related Products
sale
Add to Cart
The item has been added

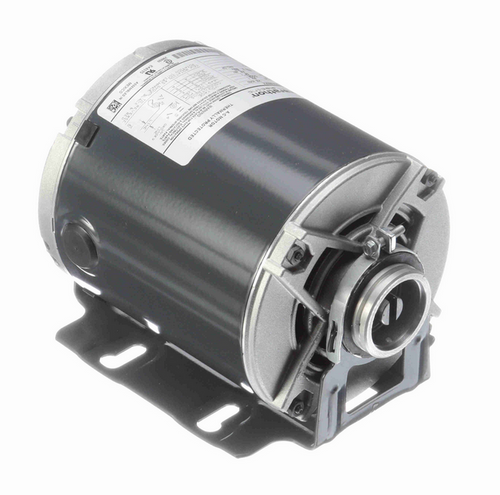

H683 Marathon 1/3 hp Carbonator Pump Motor 1800 RPM 100-120/200-240V, 48Y ODP Frame (resilient base) Marathon
H683 Marathon 1/3 hp Carbonator Pump Motor 1800 RPM 100-120/200-240V, 48Y ODP Frame (Resilient Base)
This Marathon 1/3 horsepower carbonator pump motor is a direct replacement designed for liquid...
$345.00
$266.95
sale
Add to Cart
The item has been added
4805 Marathon 1/3 hp Carbonator Pump Motor 1800 RPM 100-120/200-240V, 48Y ODP Frame (resilient base)
4805 Marathon 1/3 hp Carbonator Pump Motor 1800 RPM 100-120/200-240V, 48Y ODP Frame (resilient base)
This Marathon 1/3 hp carbonator pump motor is a direct replacement designed for liquid transfer...
$303.03
$249.95
sale
Add to Cart
The item has been added
HG450 Marathon 1/3 hp Carbonator Pump Motor 1800 RPM 220-240V, 48Y ODP Frame (resilient base)
1/3 hp 1800/1500 RPM, 2.7 amps, 220-240 volts, Split-Phase
NEMA 48Y Frame; Special shaft, 50/60 Hz
Service Factor: 1.0, Overload protection: Auto
Resilient base, Reversible, Ball Bearings; Class B...
$293.60
$264.44
sale
Add to Cart
The item has been added

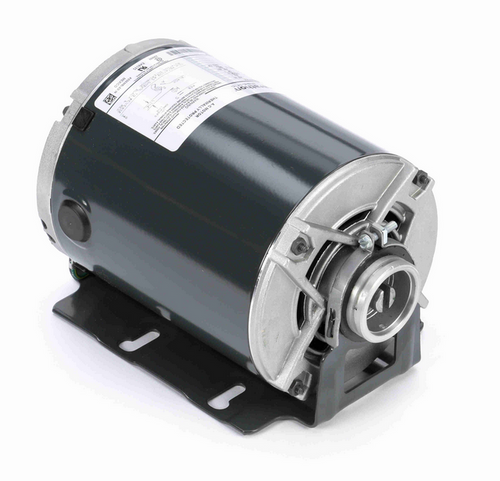

H926 Marathon 1/2 hp Carbonator Pump Motor 1800 RPM 115V, 48Y ODP Frame (resilient base)
