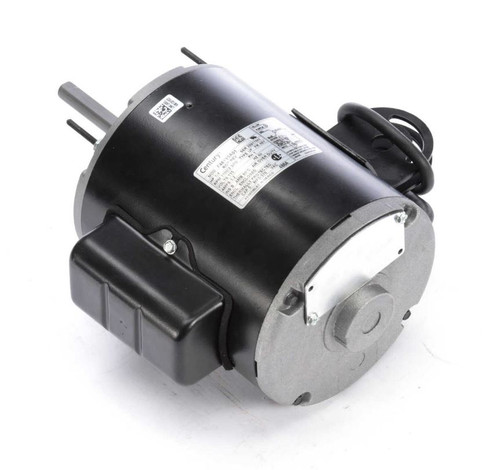

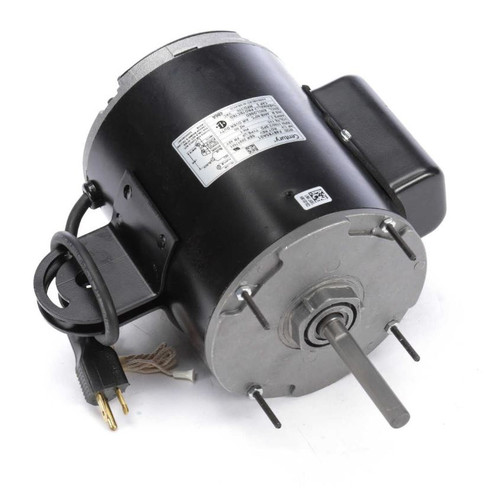

486A Century | 1/4 hp (2 speed) 115V 1100 RPM TEAO 48Y Frame PSC Pedistal Fan Motor

486A Century | 1/4 hp (2 speed) 115V 1100 RPM TEAO 48Y Frame PSC Pedestal Fan Motor

This 1/4 horsepower, two-speed pedestal fan motor is designed for commercial-grade applications, providing reliable and quiet operation. It serves as a direct replacement for Century 486A motors and is ideal for use in pedestal fans requiring a durable, reversible motor.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1100
• Voltage: 115 V
• Amperage: 3.2 A
• Enclosure: Totally Enclosed Air Over (TEAO)
• Frame / Diameter: NEMA 48Y

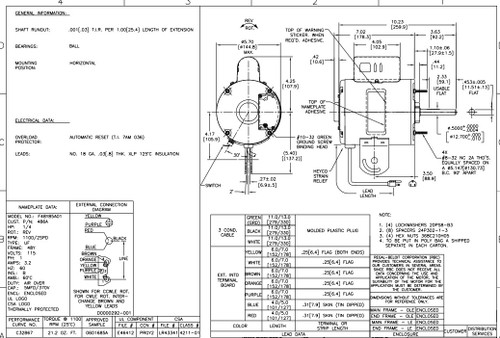

• Shaft Dimensions: 3 1/2" length x 1/2" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a PSC design with a service factor of 1.0 and automatic thermal protection for enhanced durability. It mounts via a yoke and can be installed with the shaft oriented vertically or horizontally. The TEAO enclosure requires the motor to be positioned within a cooling air stream to ensure optimal performance.

Warranty

1 Year Manufacturer Warranty
