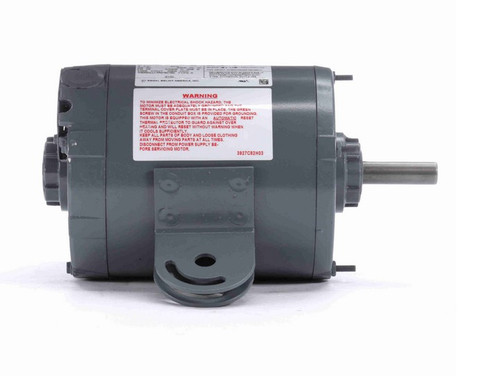

915L Century 1/2 hp (1 speed) 115V 1800 RPM ODP 48 Frame PSC Pedistal Fan Motor

915L Century 1/2 hp (1 speed) 115V 1800 RPM ODP 48 Frame PSC Pedestal Fan Motor

This 915L Century motor is a 1/2 horsepower, single-speed pedestal fan motor designed for commercial-grade applications. It is a direct replacement for motors requiring a 48 frame, open drip proof (ODP) enclosure and operates efficiently at 115 volts and 1800 RPM.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115V
• Amperage: 6.9 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: 1 7/8" length x 1/2" diameter
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

The motor features a PSC design with Class B insulation and built-in automatic thermal protection for reliable operation. It mounts via a yoke and is suitable for both vertical and horizontal shaft orientations, making it versatile for various pedestal fan installations.

Warranty

1 Year Manufacturer Warranty
