Leeson

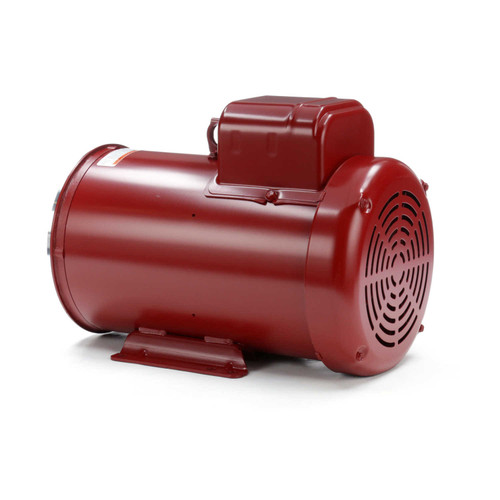

131995.00 Leeson | 5 hp 1740 RPM 184TC w/base 230V Farm Duty
(No reviews)
Write a Review
Write a Review
Leeson
131995.00 Leeson | 5 hp 1740 RPM 184TC w/base 230V Farm Duty
$1,544.45
$1,128.15
SKU
131995.00
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
Voltage
230V
Horsepower
5 HP
RPM
1740
Frame
184TC
Enclosure
TEFC
Hertz
60 Hz
Amperage
20.5 Amps
Bearings
Ball Bearings
Service Factor
1.15
Mounting
Rigid Base
- 5 hp 1740 RPM, 20.5 amps, 230V 60hz.
- NEMA 184TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
- Rigid Base, TEFC-Totally Enclosed Fan Cooled
- Reversible; Manual Overload Protection
- Class F Insulated; Service Factor 1.15
- Ball Bearings w/low temp grease
- 1 Year Manufacture Warranty
High Starting Torque Motor; Model P184K17FK13A; 131995.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| Voltage | 230V |
| Horsepower | 5 HP |
| RPM | 1740 |
| Frame | 184TC |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 20.5 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Mounting | Rigid Base |
