132471.00 Leeson | 5 hp 1800 RPM 184TC Frame ODP C-Face (No Base) Brake Motor 230/460V

132471.00 Leeson 5 hp 1800 RPM 184TC Frame ODP C-Face (No Base) Brake Motor 230/460V

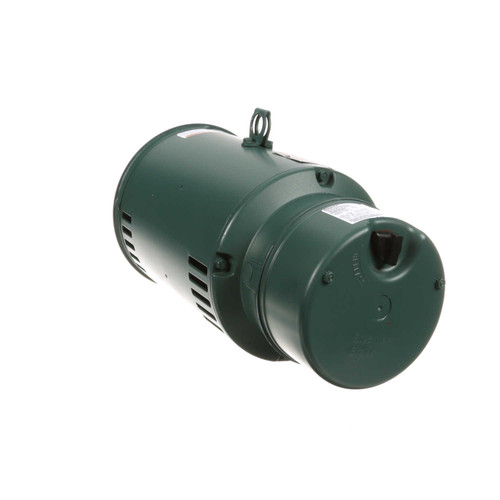

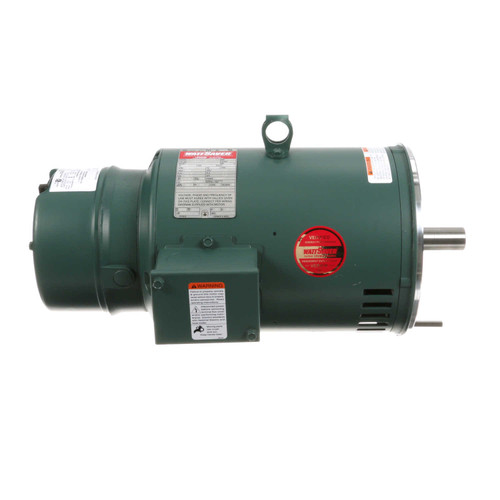

This Leeson brake motor is a 5 horsepower, 1800 RPM, three-phase motor designed for industrial applications requiring reliable braking performance. It replaces Marathon K582 and 184TTDBD6040 models and features a fail-safe, spring-set brake manufactured by Stearns for automatic load holding when power is off.

Key Specifications

• Horsepower: 5 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 12.6/6.3 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 184TC
• Shaft Dimensions: 1 1/8" Diameter x 2 3/4" Length

Product Features & Fitment

This motor features a round body design without a base and includes a keyed shaft for secure coupling. The brake is spring-set for fail-safe stopping and automatically holds the load when power is removed. A power-off manual release is integrated for convenience and emergency use, resetting automatically. Brake coil leads are brought into the motor’s conduit box for easy wiring and can be configured to operate either when motor power is off or independently. The brake coil operates at 230/460 VAC, 60 Hz.

Cross Reference

• Marathon K582, 184TTDBD6040

Warranty

1 Year Manufacturer Warranty
