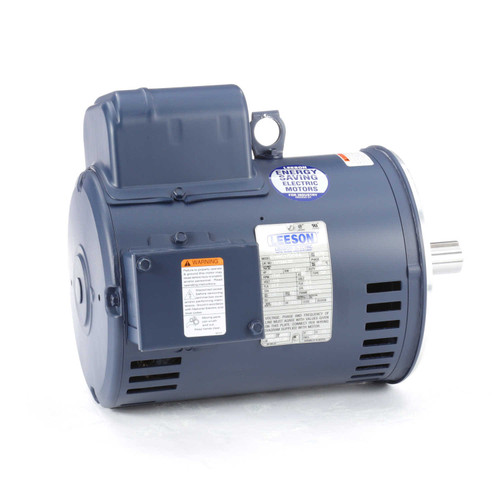

131544.00 Leeson | 3 hp 1800 RPM 184TC Frame ODP C-Face (no base) 115/230V

SKU:
131544
Weight:
76.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $694.92
Now: $631.74
  • 3 hp 1800 RPM, 33.8/16.9 amps 115/230 Volts 60hz. single Phase Motor
  • NEMA 184TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 - overload protection = None
  • No Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor is round body with no base mounting. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 7 1/4" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

C184C17DC5A, 131544.00
