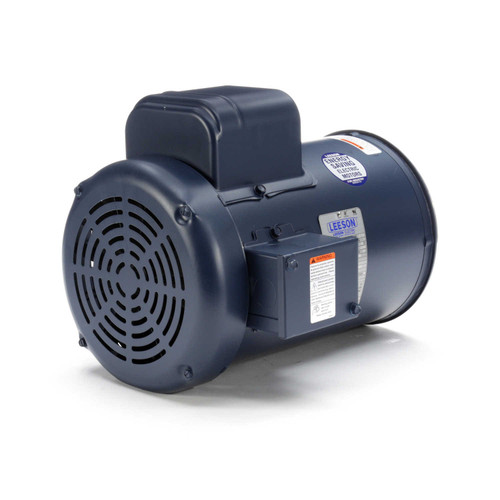

131545.00 Leeson | 3 hp 1800 RPM 184TC Frame TEFC C-Face (no base) 115/208-230V

SKU:
131545
Weight:
85.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $1,151.70
Now: $1,047.00
  • 3 hp 1800 RPM, 33.6/16.8  amps 115/208-230 Volts 60hz. single Phase Motor

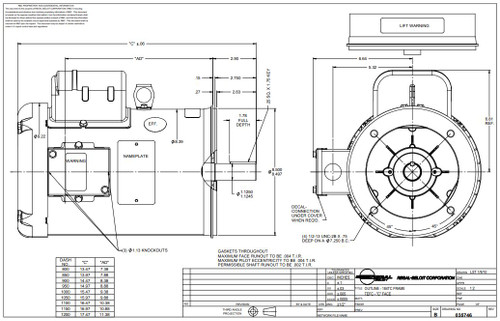

  • NEMA 184TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.0 - overload protection = None
  • No Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

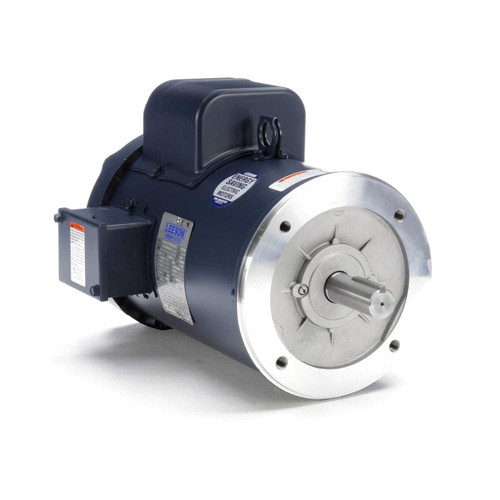

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor is round body with no base mounting. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 7 1/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C184C17FC4C, 131545.00
