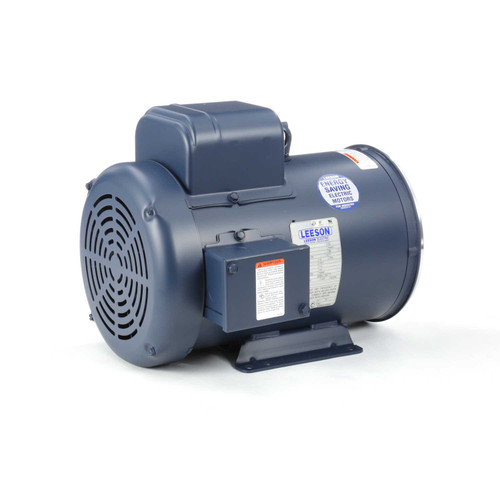

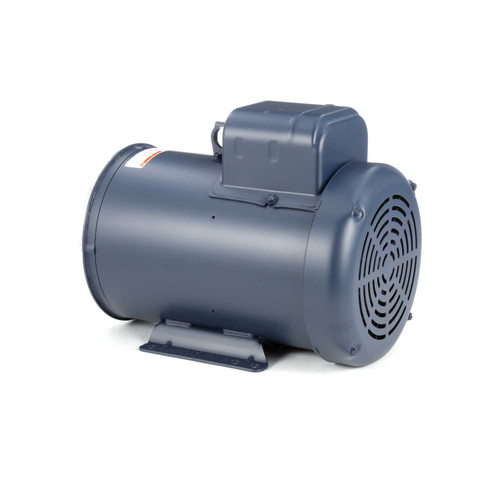

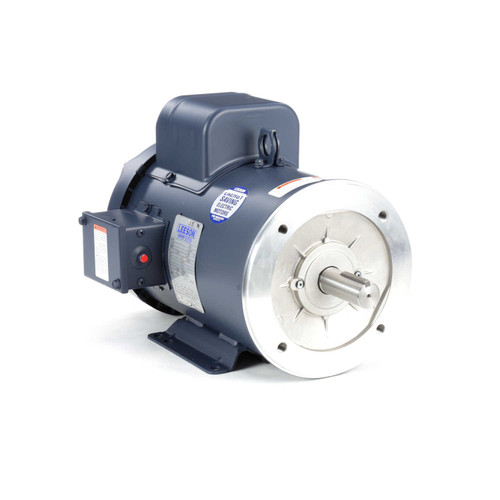

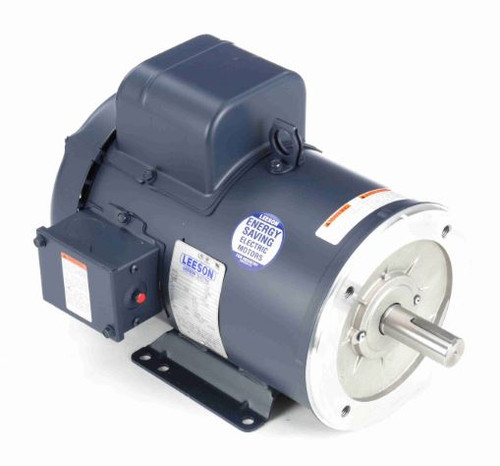

131631.00 Leeson | 3 hp 1800 RPM 184TC Frame TEFC C-Face- Rigid Base 115/208-230V
131631.00 Leeson | 3 hp 1800 RPM 184TC Frame TEFC C-Face- Rigid Base 115/208-230V
131631.00 Leeson | 3 hp 1800 RPM 184TC Frame TEFC C-Face- Rigid Base 115/208-230V
131631.00 Leeson | 3 hp 1800 RPM 184TC Frame TEFC C-Face- Rigid Base 115/208-230V
131631.00 Leeson | 3 hp 1800 RPM 184TC Frame TEFC C-Face- Rigid Base 115/208-230V
131631.00 Leeson | 3 hp 1800 RPM 184TC Frame TEFC C-Face- Rigid Base 115/208-230V
131631.00 Leeson | 3 hp 1800 RPM 184TC Frame TEFC C-Face- Rigid Base 115/208-230V
131631.00 Leeson | 3 hp 1800 RPM 184TC Frame TEFC C-Face- Rigid Base 115/208-230V
131631.00 Leeson | 3 hp 1800 RPM 184TC Frame TEFC C-Face- Rigid Base 115/208-230V
131631.00 Leeson | 3 hp 1800 RPM 184TC Frame TEFC C-Face- Rigid Base 115/208-230V

Leeson

131631.00 Leeson | 3 hp 1800 RPM 184TC Frame TEFC C-Face- Rigid Base 115/208-230V

(No reviews) Write a Review
$1,609.18
$799.95
SKU 131631.00
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html

CURRENTLY OUT OF STOCK

Description
  • 3 hp 1800 RPM, 33.6/16.8 amps 115/208-230 Volts 60hz. single Phase Motor
  • NEMA 184TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.0 - overload protection = Manual
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 7 1/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

P184C17FK9C, 131631.00
