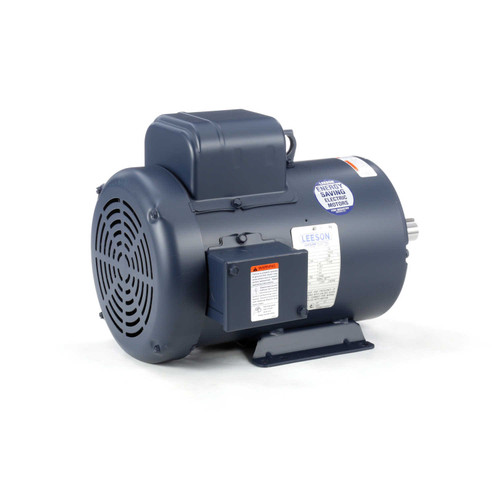

131549.00 Leeson | 5 hp 3450 RPM 184T Frame TEFC 230 Volts
131549.00 Leeson | 5 hp 3450 RPM 184T Frame TEFC 230 Volts
131549.00 Leeson | 5 hp 3450 RPM 184T Frame TEFC 230 Volts
131549.00 Leeson | 5 hp 3450 RPM 184T Frame TEFC 230 Volts
131549.00 Leeson | 5 hp 3450 RPM 184T Frame TEFC 230 Volts
131549.00 Leeson | 5 hp 3450 RPM 184T Frame TEFC 230 Volts
131549.00 Leeson | 5 hp 3450 RPM 184T Frame TEFC 230 Volts
131549.00 Leeson | 5 hp 3450 RPM 184T Frame TEFC 230 Volts

Leeson

131549.00 Leeson | 5 hp 3450 RPM 184T Frame TEFC 230 Volts

(No reviews) Write a Review
$1,361.60
$973.59
SKU 131549.00
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html

CURRENTLY OUT OF STOCK

Description
  • 5 hp 3450 RPM, 19.8 amps 230 Volts 60hz. single Phase Motor
  • NEMA 184T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • TEFC = Totally Enclosed Fan cooled.
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate.

C184K34FB6C, 131549.00
