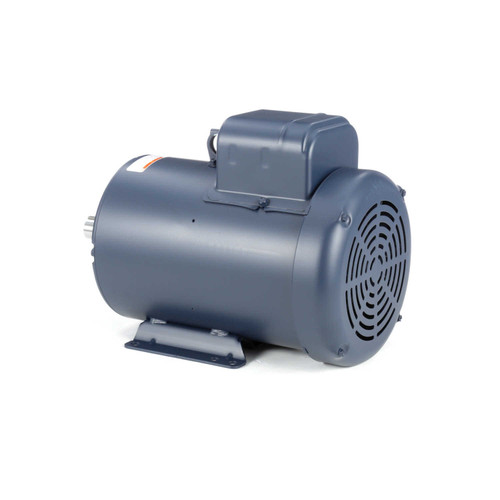

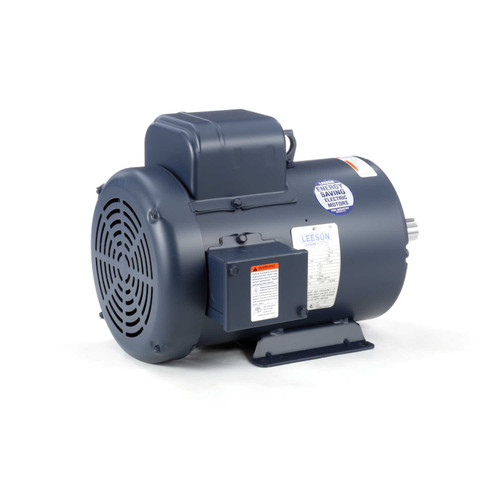

5 hp 3450 RPM 184T Frame TEFC 230V Leeson Electric Motor # 132042

SKU:
132042
Manufacturer
Leeson
Weight:
150.00 LBS
Shipping:
Calculated at Checkout
$832.26
  • 5 hp 3450 RPM, 19.8 amps 230 Volts 60hz. single Phase Motor
  • NEMA 184T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 - overload protection = Manual
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.
