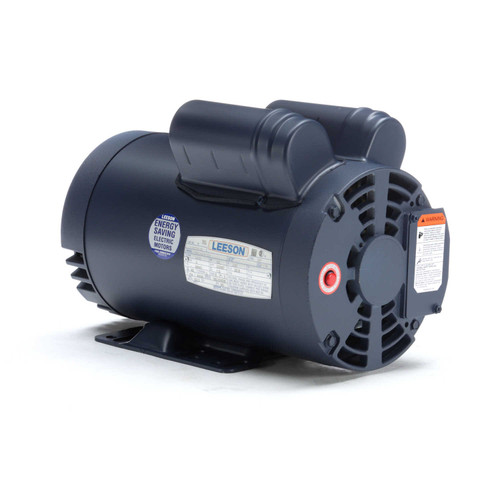

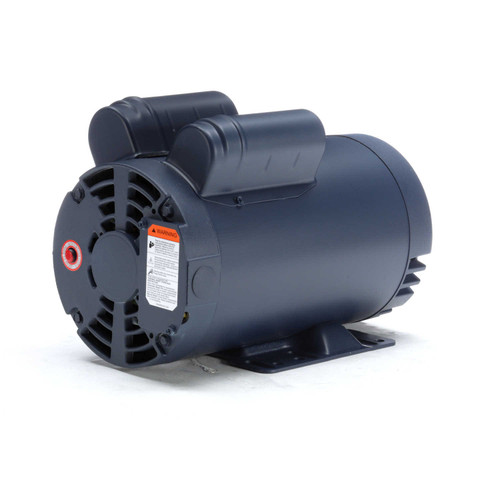

5 hp 3600 RPM 56HC Frame ODP C-Face (rigid base) 230V Leeson Electric Motor # 116709

SKU:
116709
Manufacturer
Leeson
Weight:
51.00 LBS
Shipping:
Free Shipping
$501.85
  • 5 hp 3600 RPM,  20.8 amps 230 Volts 60hz. single Phase Motor
  • NEMA 56HC Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0 - overload protection = Manual
  • Rigid Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

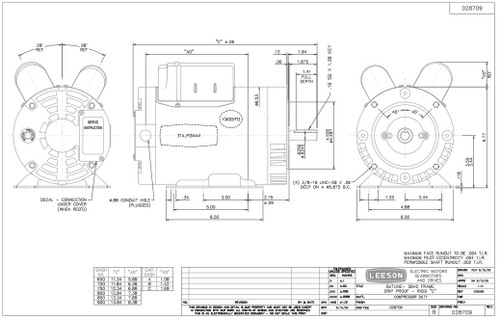

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor has rigid base with a C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 7 1/4" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

P6K34DK18A, 116709.00
