sale
Marathon

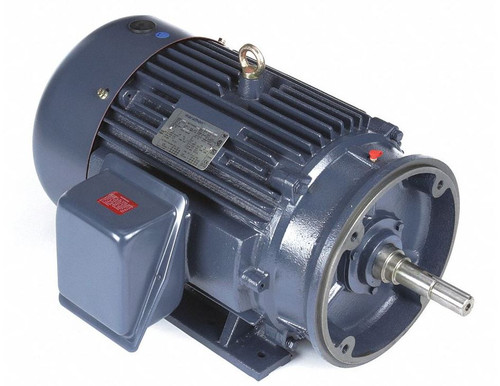

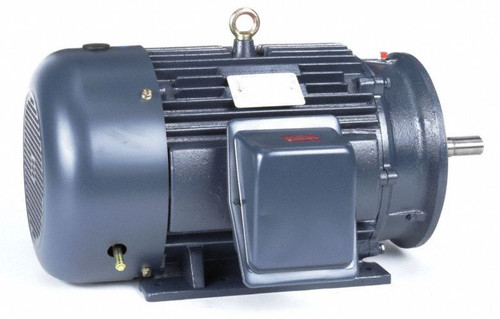

GT3137A Marathon 50 hp 1800 RPM 326JM Frame TEFC 230/460V Marathon Close Couple Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT3137A Marathon 50 hp 1800 RPM 326JM Frame TEFC 230/460V Marathon Close Couple Motor
$5,681.00
$4,828.85
SKU
GT3137A
UPC
7.23E+11
Availability
LIMITED STOCK
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
50 HP
RPM
1800
Phase
Three Phase
Frame
326JM
Enclosure
TEFC
Hertz
60 Hz
Amperage
117.0/58.5 Amps
Bearings
Ball Bearings
Insulation Class
Class F
Mounting
Rigid Base
Duty
Continuous duty
- 50 hp 1800 RPM 326JM Frame, 117.0/58.5 amps 230/460V 60hz. Three Phase Motor
- Close Coupled Pump Motor - Rigid Base
- Totally Enclosed Fan Cooled - Service Factor = 1.15
- Class F Insulation; No Overload Protection
- Continuous duty; Ball Bearings
- One Year Manufacture Warranty
Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.
326TTFCD6031 Replaces Leeson B199986.00, B199986, 199986.00, 199986
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 50 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 326JM |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 117.0/58.5 Amps |
| Bearings | Ball Bearings |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Duty | Continuous duty |
