D50P1DS Nidec | 50 hp 3600 RPM 324TS Frame 208-230/460V ODP Electric Motor Nide
D50P1DS Nidec | 50 hp 3600 RPM 324TS Frame 208-230/460V ODP Electric Motor Nide
D50P1DS Nidec | 50 hp 3600 RPM 324TS Frame 208-230/460V ODP Electric Motor Nide
D50P1DS Nidec | 50 hp 3600 RPM 324TS Frame 208-230/460V ODP Electric Motor Nide

Nidec

D50P1DS Nidec | 50 hp 3600 RPM 324TS Frame 208-230/460V ODP Electric Motor Nide

(No reviews) Write a Review
$2,835.90
$2,532.30
SKU D50P1DS
UPC 7.86E+11
Availability Subject to availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 50 HP
RPM 3600
Phase Three Phase
Frame 324TS
Enclosure ODP
Hertz 50/60 Hz
Amperage 117.0/59.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 50 hp 3600 RPM, 117.0/59.0 amps 208-230/460V, 50/60hz. Three Phase

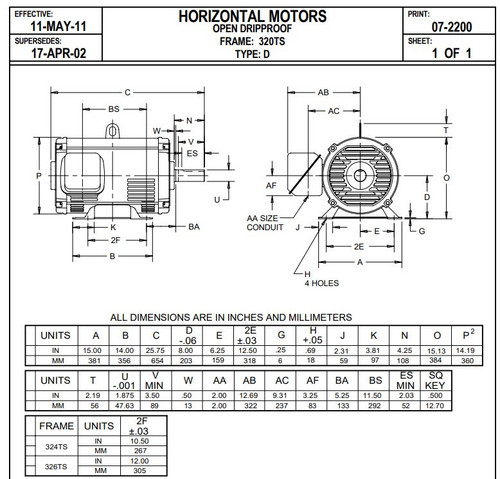

  • NEMA 324TS Frame Keyed Shaft 1 7/8" Diameter x 3 3/4"
  • ODP; Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
  • "C" Dimension 25.8"
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model DC33

Specifications
Voltage 208/230/460V
Horsepower 50 HP
RPM 3600
Phase Three Phase
Frame 324TS
Enclosure ODP
Hertz 50/60 Hz
Amperage 117.0/59.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
