5462H Nidec Rescue 1/3 hp 1075 RPM 208-230V 5.6" Dia. (No Base) 2-Speed TEAO Condenser Motor

5462H Nidec Rescue 1/3 hp 1075 RPM 208-230V 5.6" Dia. (No Base) 2-Speed TEAO Condenser Motor

This 1/3 horsepower condenser fan motor is designed for HVAC applications requiring reliable two-speed operation. It serves as a direct replacement for compatible Nidec Rescue motors, offering efficient performance in condenser units.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 2.6/1.8 amps
• Enclosure: TEAO (Totally Enclosed Air Over)
• Frame / Diameter: NEMA 5.6" diameter rolled steel frame
• Shaft Dimensions: 1/2" diameter x 4" length, flat shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

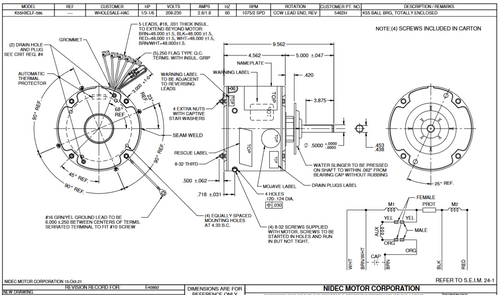

This motor features an automatic overload protection and a stud mount design for secure installation. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections. The motor’s Class F insulation ensures durability in demanding condenser fan applications.

Warranty

1 Year Manufacturer Warranty
