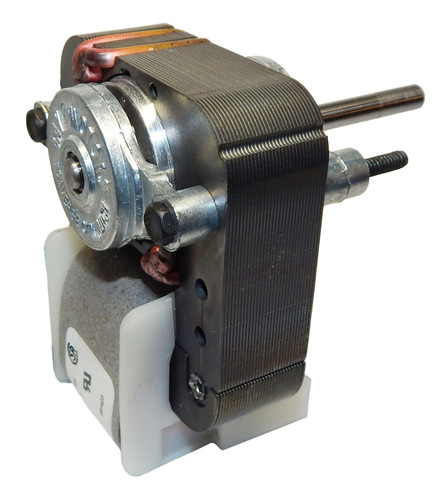

Nutone Aftermarket Fan Motor C-57769
This aftermarket replacement motor is designed as a direct OEM equivalent for Nutone fan motor model 57769. It is suitable for use in various Nutone ventilation units, providing reliable single-speed operation.
Key Specifications
- Voltage: 120V
- Amperage: 0.94 amps
- RPM: 3000 RPM - Single Speed
- Rotation: CCW Shaft Side
- Shaft Dimensions: 7/32" diameter x 1.53" length with flat
- Frame / Diameter: 3/4" stack size
Product Features & Fitment
The motor features two mounting studs on the front spaced 1-7/8" on center for secure installation. It includes two wires with ring terminals for straightforward electrical connections. This motor fits Nutone units including models 9013, 9013NL, 9093 series, 9113N, 9605 series, 9665N, and H965. Cross reference part numbers include C-57769, C57769, and J238-075-7072.
Warranty
1 Year Manufacturer Warranty
