GT0081 Marathon 60 hp 1780 RPM 364T Frame 208-230/460 Volts Open Drip Electric Motor
GT0081 Marathon 60 hp 1780 RPM 364T Frame 208-230/460 Volts Open Drip Electric Motor
GT0081 Marathon 60 hp 1780 RPM 364T Frame 208-230/460 Volts Open Drip Electric Motor
GT0081 Marathon 60 hp 1780 RPM 364T Frame 208-230/460 Volts Open Drip Electric Motor
GT0081 Marathon 60 hp 1780 RPM 364T Frame 208-230/460 Volts Open Drip Electric Motor
GT0081 Marathon 60 hp 1780 RPM 364T Frame 208-230/460 Volts Open Drip Electric Motor

Marathon

GT0081 Marathon 60 hp 1780 RPM 364T Frame 208-230/460 Volts Open Drip Electric Motor

(No reviews) Write a Review
$4,251.21
$3,639.75
SKU MGT0081
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 60 HP
RPM 1780
Phase Three Phase
Frame 364T
Enclosure ODP
Hertz 60 Hz
Amperage 140.0/70.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 60 hp 1800 RPM, 140.0/70.0 amps 230/460 Volts 60hz. Three Phase Motor

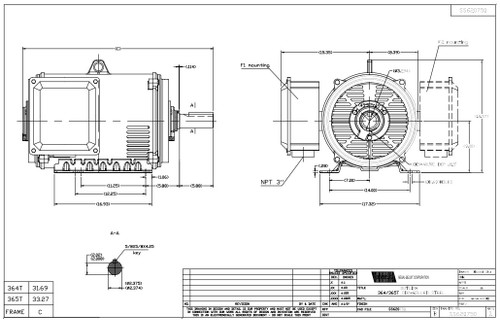

  • NEMA 364T Frame Keyed Shaft 2 3/8 " Diameter x 5 7/8"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • Rolled Steel Construction
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

364TTDBD6060 Replaces Leeson 170025.60, B199717.00, 199717.00; Dayton 454X70

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 60 HP
RPM 1780
Phase Three Phase
Frame 364T
Enclosure ODP
Hertz 60 Hz
Amperage 140.0/70.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
