GT1240A Marathon 60 hp 1800 RPM 364TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1240A Marathon 60 hp 1800 RPM 364TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1240A Marathon 60 hp 1800 RPM 364TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1240A Marathon 60 hp 1800 RPM 364TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1240A Marathon 60 hp 1800 RPM 364TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1240A Marathon 60 hp 1800 RPM 364TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1240A Marathon 60 hp 1800 RPM 364TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1240A Marathon 60 hp 1800 RPM 364TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1240A Marathon 60 hp 1800 RPM 364TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1240A Marathon 60 hp 1800 RPM 364TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

Marathon

GT1240A Marathon 60 hp 1800 RPM 364TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

(No reviews) Write a Review
$6,325.00
$5,515.34
SKU MGT1240
UPC 7.23E+11
Availability LIMITED STOCK
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 60 HP
RPM 1800
Phase Three Phase
Frame 364TC
Enclosure TEFC
Hertz 60 Hz
Amperage 138.0/69.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face

CURRENTLY OUT OF STOCK

Description
  • 60 hp 1800 RPM, 138.0/69.0 amps 230/460 Volts 60hz. Three Phase Motor

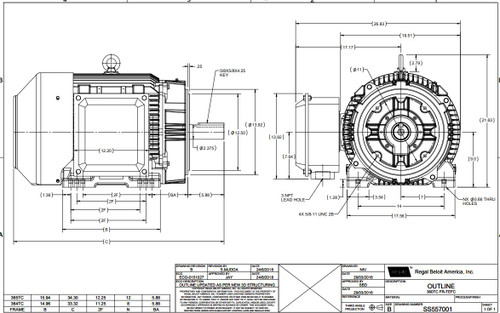

  • NEMA 364TC Frame Keyed Shaft 2 3/8 " Diameter x 5 7/8"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has threaded bolt holes on face for mounting a pump or gear head to the motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

364TTFCD6038 Replaces Leeson C364T17FK5A, 171595.60, 171595.00, B199072.00, 199072.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 60 HP
RPM 1800
Phase Three Phase
Frame 364TC
Enclosure TEFC
Hertz 60 Hz
Amperage 138.0/69.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
!
