6313 Nidec 3/4 hp 1800 RPM 100-120/200-240V 5.6" Dia. (Base) 1-Speed ODP Belt Drive Motor
6313 Nidec 3/4 hp 1800 RPM 100-120/200-240V 5.6" Dia. (Base) 1-Speed ODP Belt Drive Motor
6313 Nidec 3/4 hp 1800 RPM 100-120/200-240V 5.6" Dia. (Base) 1-Speed ODP Belt Drive Motor
6313 Nidec 3/4 hp 1800 RPM 100-120/200-240V 5.6" Dia. (Base) 1-Speed ODP Belt Drive Motor

Nidec

6313 Nidec 3/4 hp 1800 RPM 100-120/200-240V 5.6" Dia. (Base) 1-Speed ODP Belt Drive Motor

(No reviews) Write a Review
$560.05
$500.37
SKU 6313
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 100/120/200/240V
Horsepower 3/4 HP
RPM 1800
Enclosure ODP
Hertz 50/60 Hz
Amperage 4.2 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 3/4 hp 1800 RPM (1 speed), 9.2-8.4/4.6-4.2 amps 100-120/200-240V Volts 50/60 Hz Capacitor Start/Run Motor
  • 5.6" Dia. Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 1 7/8"
  • Service Factor = 1.25, Overload Protection: Auto
  • Resilient Base Mount, Ball Bearings, Class B Insulation, Rev
  • 1 Year Manufacture Warranty

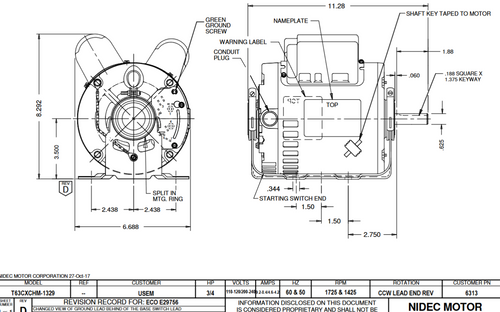

Belt Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. ODP = Open Drip-Proof, T063CHM1329022B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 100/120/200/240V
Horsepower 3/4 HP
RPM 1800
Enclosure ODP
Hertz 50/60 Hz
Amperage 4.2 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
!
