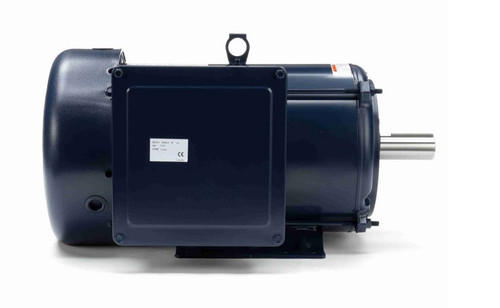

I215 Marathon 7 1/2 hp 1800 RPM 215T Frame 208-230V Totally Enclosed Marathon Electric Motor

I215 Marathon 7 1/2 hp 1800 RPM 215T Frame 208-230V Totally Enclosed Marathon Electric Motor

This Marathon 7 1/2 horsepower electric motor is designed for general-purpose applications requiring a single-phase power source. It replaces motors with similar specifications and is ideal for equipment needing a reliable, totally enclosed fan-cooled (TEFC) motor.

Key Specifications

• Horsepower: 7 1/2 hp
• RPM: 1800
• Voltage: 208-230V
• Amperage: 35.0-30.0 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 215T Frame
• Shaft Dimensions: 1 3/8" Diameter x 3 3/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start/run design and a rigid base mount for stable installation. It includes a keyed shaft and Class B insulation for durability. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections. The motor does not include overload protection and has a service factor of 1.0.

Warranty

1 Year Manufacturer Warranty
