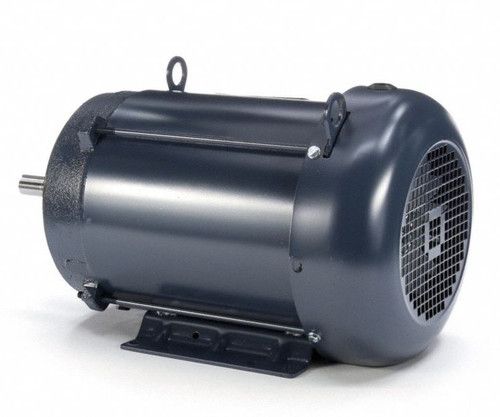

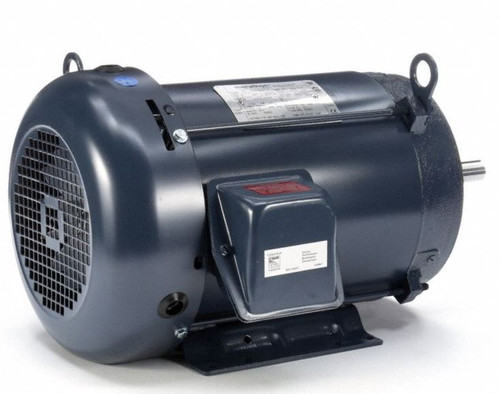

GT3116A Marathon 7.5 hp 1800 RPM 213JM Frame TEFC 230/460V Marathon Close Couple Motor

GT3116A Marathon 7.5 hp 1800 RPM 213JM Frame TEFC 230/460V Marathon Close Couple Motor

The GT3116A is a Marathon close-coupled pump motor designed for continuous duty service on close-coupled pumps. It replaces models 199780.00, 199780, B199780.00, B199780, and Dayton 52NU21, making it a reliable choice for industrial motor applications requiring a rigid base mount.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 1800
• Voltage: 230/460V
• Amperage: 19.0/9.5 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: 213JM
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base suitable for close-coupled pump installations and includes a wiring diagram on the motor nameplate for ease of setup. It is equipped with Class F insulation and is rated for continuous duty operation, ensuring durability and reliable performance in demanding environments.

Cross Reference

• 199780.00, 199780, B199780.00, B199780; Dayton 52NU21

Warranty

1 Year Manufacturer Warranty
