D7P2H Nidec | 7.5 hp 1800 RPM 213T Frame 200V ODP Motor Electric Motor Nidec

D7P2H Nidec 7.5 hp 1800 RPM 213T Frame 200V ODP Electric Motor

This general-purpose three-phase electric motor is designed for continuous duty applications requiring reliable performance. It is a premium efficient replacement motor compatible with models R340 and Dayton 6YW87.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 1800
• Voltage: 200V
• Amperage: 21.4 amps
• Enclosure: Open Drip Proof (ODP)

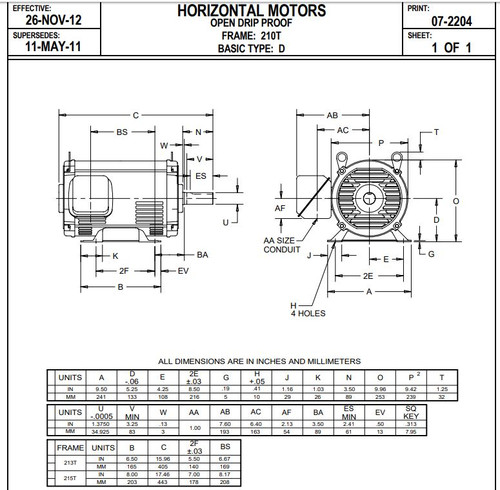

• Frame / Diameter: NEMA 213T
• Shaft Dimensions: Keyed shaft 1-3/8" diameter x 3-3/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for stable installation and includes Class F insulation for enhanced thermal protection. It is rated for operation in ambient temperatures up to 40°C and comes with a wiring diagram located on the motor nameplate for ease of setup. Overload protection is not included.

Warranty

1 Year Manufacturer Warranty
