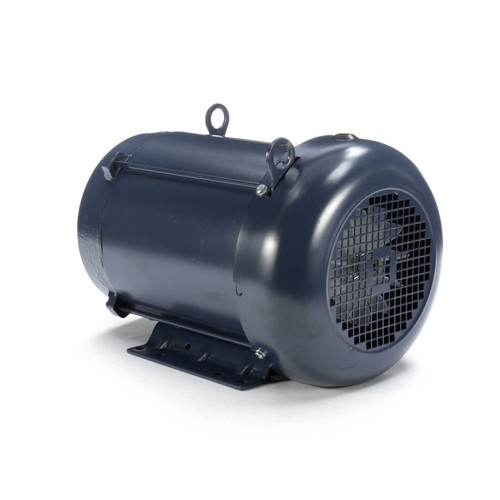

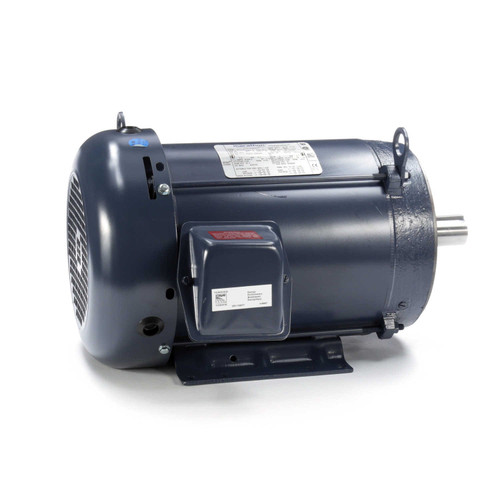

GT1216A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1216A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1216A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1216A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1216A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1216A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1216A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1216A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

Marathon

GT1216A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

(No reviews) Write a Review
$1,051.56
$819.95
SKU MGT1216
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 7-1/2 HP
RPM 1800
Phase Three Phase
Frame 213TC
Enclosure TEFC
Hertz 60 Hz
Amperage 19.0/9.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
Adding to cart… The item has been added
Description
  • 7.5 hp 1800 RPM, 19.0/9.5 amps 230/460 Volts 60hz. Three Phase Motor

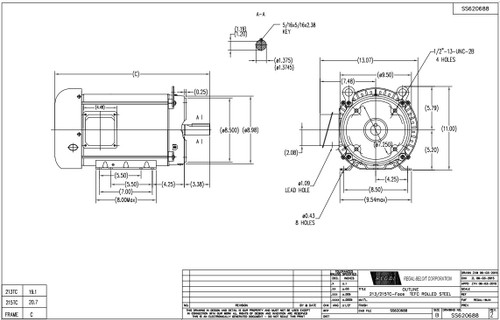

  • NEMA 213TC Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has threaded bolt holes on face for mounting a pump or gear head to the motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

213TTFBD6028 Replaces Leeson C213T17FK7C, 140521.00, B199056.00, 199056.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 7-1/2 HP
RPM 1800
Phase Three Phase
Frame 213TC
Enclosure TEFC
Hertz 60 Hz
Amperage 19.0/9.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
!
