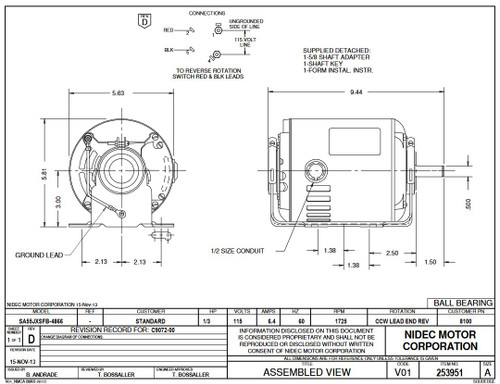

8100 Nidec | 1/3 hp 1725 RPM 48 Frame 115V Belt Drive Furnace Motor

8100 Nidec | 1/3 hp 1725 RPM 48 Frame 115V Belt Drive Furnace Motor

This 1/3 horsepower belt drive furnace blower motor by Nidec is designed for reliable, continuous duty in HVAC applications. It serves as a direct replacement for popular models including Century GF2034, Dayton 48Z076, Marathon B207, and GE 4706.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1725
• Voltage: 115V
• Amperage: 6.4 amps
• Enclosure: Open Drip Proof
• Frame / Diameter: 48 Frame
• Shaft Dimensions: 1/2" x 1.5"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient base mount with holes compatible for both 56 and 48 frame motors, facilitating straightforward installation. It includes a 5/8" shaft bushing and is equipped with automatic overload protection, Class B insulation, and is rated for operation at 40°C ambient temperature and 60 Hertz frequency.

Cross Reference

• the popular Century GF2034, 316P759
• Dayton 48Z076, 6K778; Marathon B207; GE 4706

Warranty

1 Year Manufacturer Warranty
