sale
Nidec
8869 Nidec 1/2 hp 1075 RPM 400-460V 5.6" Dia. (No Base) 1-Speed Open Condenser Motor
(No reviews)
Write a Review
Write a Review
Nidec
8869 Nidec 1/2 hp 1075 RPM 400-460V 5.6" Dia. (No Base) 1-Speed Open Condenser Motor
$343.85
$306.71
SKU
8869
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
400/460V
Horsepower
1/2 HP
RPM
1075
Hertz
60 Hz
Type
PSC (Permanent Split Capacitor)
Amperage
1.5 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B
Mounting
Stud
8869 Nidec 1/2 hp 1075 RPM 400-460V 5.6" Dia. (No Base) 1-Speed Open Condenser Motor
This Nidec 1/2 horsepower condenser motor is designed for HVAC applications requiring a reliable replacement motor. It fits select condenser fan assemblies and operates efficiently at 1075 RPM with a 1-speed open design.
Key Specifications
- Horsepower: 1/2 hp
- RPM: 1075
- Voltage: 400-460V
- Amperage: 1.5 amps
- Enclosure: Open
- Frame / Diameter: NEMA 5.6" Diameter
- Shaft Dimensions: 1/2" Diameter x 3" Length, Flat Shaft
- Rotation: Counterclockwise (CCW) lead end
- Bearings: Ball Bearings
Product Features & Fitment

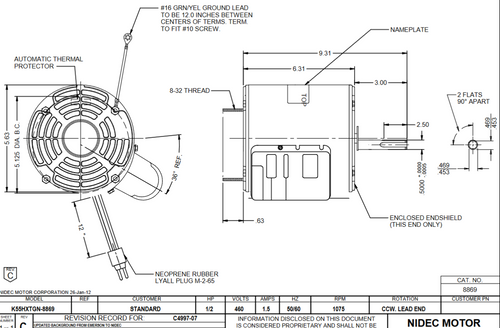

This motor features a rolled steel frame with a stud mount for secure installation. It includes Class B insulation and an automatic overload protection system. Wiring diagrams are provided on the motor nameplate for ease of connection.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 400/460V |
| Horsepower | 1/2 HP |
| RPM | 1075 |
| Hertz | 60 Hz |
| Type | PSC (Permanent Split Capacitor) |
| Amperage | 1.5 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class B |
| Mounting | Stud |
