- 7 1/2 hp 1200 RPM, 9.4 amps 460 Volts 60 Hz Three Phase Motor

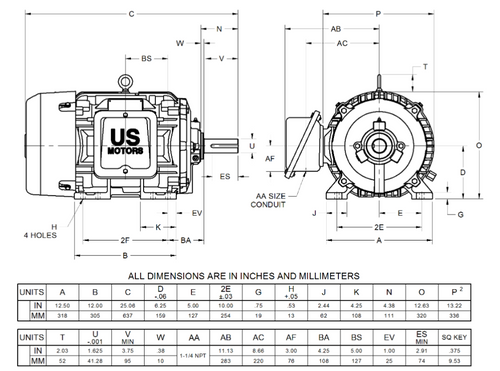

- NEMA 254T Cast Iron Frame, Keyed Shaft 1 5/8" Diameter x 4"
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 5 Year Manufacture Warranty, 3 year on inverter power
Corrosion resistant inverter duty motor is designed for use in petro-chemical and similar industries. Self-Certified Class 1, Division 2, Groups A, B, C, and D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GB40
