9036 Marathon 3 hp (1 speed) 230V 3600 RPM ODP 56 Frame Cap Start/Run Pressure Washer Motor

9036 Marathon 3 hp (1 speed) 230V 3600 RPM ODP 56 Frame Cap Start/Run Pressure Washer Motor

This Marathon 3 horsepower motor is designed for use in pressure washer air compressor units. It features a single-speed operation with a capacitor start and run, providing reliable performance for replacement or new installations.

Key Specifications

• Horsepower: 3 hp
• RPM: 3600
• Voltage: 230 V
• Amperage: 14.0 A
• Enclosure: Open Drip Proof (ODP)

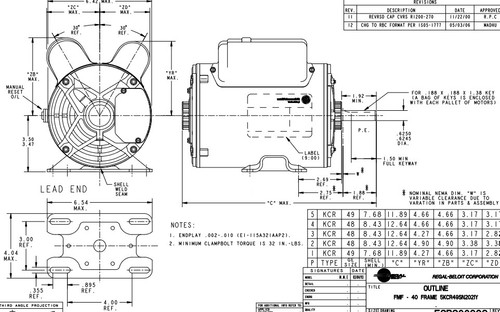

• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 1 7/8" length x 5/8" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes a rigid base for stable mounting and requires horizontal shaft orientation during installation. It has a service factor of 1.0 and manual thermal protection. Class B insulation ensures durability under typical operating conditions.

Warranty

1 Year Manufacturer Warranty
