Century Electric Motor

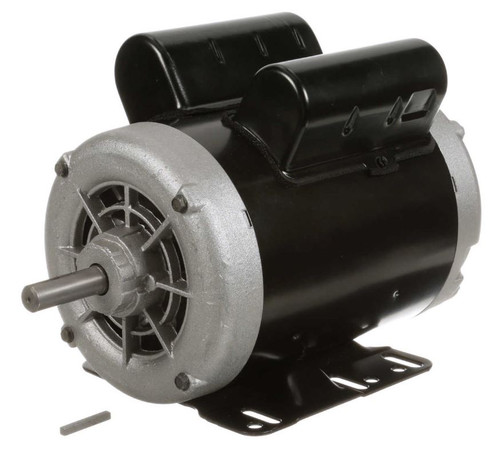

B178 Century | 3 hp (1 speed) 230V 3600 RPM ODP 56 Frame Cap Start/Run Pressure Washer Motor
(No reviews)
Write a Review
Write a Review
Century Electric Motor
B178 Century | 3 hp (1 speed) 230V 3600 RPM ODP 56 Frame Cap Start/Run Pressure Washer Motor
$399.95
$375.95
SKU
UB178
Availability
MINIMUM 45 PCS TO ORDER
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
Voltage
230V
Horsepower
3 HP
RPM
3600
Frame
56
Enclosure
ODP
Hertz
60 Hz
Amperage
12.5 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B
Rotation
Reversible
Mounting
Rigid Base
B178 Century | 3 hp (1 speed) 230V 3600 RPM ODP 56 Frame Cap Start/Run Pressure Washer Motor
This 3 horsepower, single-speed motor is designed for use in pressure washer air compressor units. It serves as a reliable replacement motor featuring a capacitor start and run system for efficient operation.
Key Specifications
- Horsepower: 3 hp
- RPM: 3600
- Voltage: 208-230 V, 60 Hz
- Amperage: 13.5-12.5 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56H Frame
- Shaft Dimensions: 1 7/8" length x 5/8" diameter
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a rigid base and manual thermal protection, with Class B insulation for durability. It is designed for horizontal shaft installation and includes capacitor start and capacitor run components to ensure smooth startup and operation.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| Voltage | 230V |
| Horsepower | 3 HP |
| RPM | 3600 |
| Frame | 56 |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 12.5 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class B |
| Rotation | Reversible |
| Mounting | Rigid Base |
