B813 Century 5 hp (1 speed) 230V 3600 RPM ODP 56HZ Frame Cap Start/Run Pressure Washer Motor

B813 Century 5 hp (1 speed) 230V 3600 RPM ODP 56HZ Frame Cap Start/Run Pressure Washer Motor

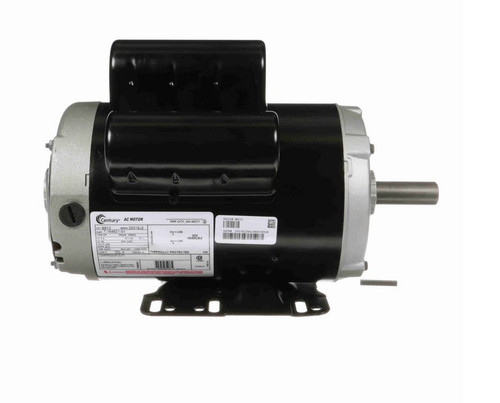

This Century B813 motor is a 5 horsepower, single-speed replacement motor designed primarily for pressure washers and air compressors. It features a capacitor start and run design with an open drip proof (ODP) enclosure, suitable for reliable industrial applications.

Key Specifications

• Horsepower: 5 hp
• RPM: 3450 RPM
• Voltage: 230 V
• Amperage: 22.0 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56HZ Frame
• Shaft Dimensions: 2 1/4" length x 7/8" diameter, shaft height 3.5" to center
• Rotation: Clockwise (facing shaft end)
• Bearings: Ball Bearings

Product Features & Fitment

This motor is designed for horizontal shaft mounting on a rigid base. It includes capacitor start and capacitor run functionality for efficient operation. Thermal protection is manual, and the motor features Class B insulation. Ideal for use in pressure washer units and air compressors, it cross-references with part number 7-164621-01.

Warranty

1 Year Manufacturer Warranty
