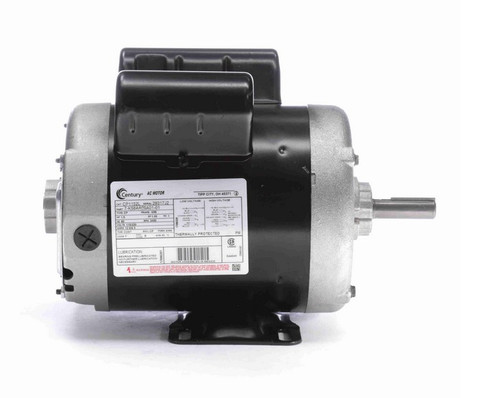

CP1152L Century Replacement 1 1/2 hp (1 speed) 115/230V 3600 RPM ODP 56 Frame Cap Start/Run Pressure Washer Motor

PEMS PM5-4000 - Direct CEntury CP1152L Replacement 1 1/2 hp (1 speed) 115/230V 3600 RPM ODP 56 Frame Cap Start/Run Pressure Washer Motor

This PM5-4000 motor is a direct replacement designed for pressure washer air compressors. It operates at a single speed and is suitable for applications requiring a 1 1/2 horsepower motor with capacitor start and run functionality.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 3600
• Voltage: 115/230 V, 60 Hz
• Amperage: 12.5/6.3 A
• Enclosure: Open Drip Proof (ODP)

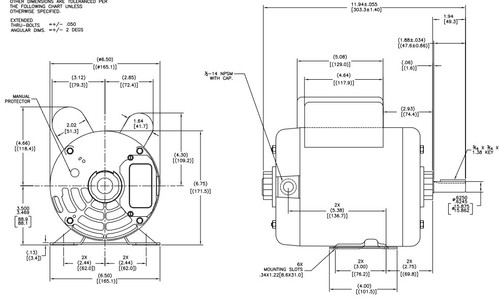

• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 1 7/8" length x 5/8" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base for stable mounting and is designed for horizontal shaft orientation. It includes manual thermal protection and Class B insulation, ensuring reliable operation in pressure washer units. The capacitor start and run design provides efficient motor startup and continuous running performance.

Warranty

1 Year Manufacturer Warranty

Cross Reference: CP1152L, K56AA09A01, 312P215 327P487 327P528 327P649 327P720 D018 B788 CP1102M 39L531, T63BXAAP-1181, CP1152M,  173734, 173892, 176274, 176275, 176276, 176277, 177594, 177699, 177835, 182885, Dayton 3K786, Dayton 4FG49, Marathon D018, Marathon Z56B34D133, Universal Electric B788
