ACT125 US Motor | 1.25 THP 3450 RPM 56J 115/230V Pool Pump Motor

Ships in 5-7 days
21.00 LBS
Calculated at Checkout
Was: $348.00
Now: $310.60
Adding to cart… The item has been added

AQUA-SHIELD High Efficiency 56J Pool Motor

  • 1.25 THP (Total Horsepower)
  • 3450 RPM 56J, 11.4/5.7 amps, 115/230V 60hz. Capacitor Start/Run
  • NEMA 56J frame (no base), 5/8" diameter threaded stainless steel shaft
  • Overload Protection: Auto - Service Factor 1.0, Class B insulation
  • Non-Reversible - CCW Rotation facing the shaft
  • C-Face Mount, Ball Bearings, Open Drip Proof (ODP)

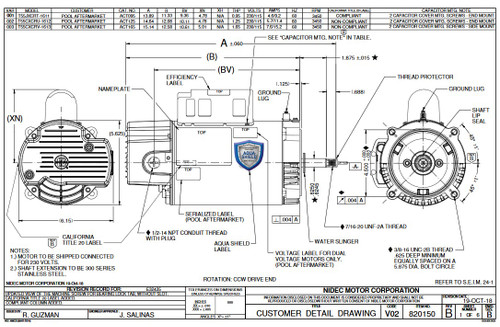

Swimming pool pump motor. Commonly found on in-ground pool pumps such as Hayward Super Pump, Maxflo, Super II and many other pumps requiring a 56J frame motor. Standard 1081 pump duty motor. Stainless steel shaft. Sealed ball bearings. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. 1 year warranty.

Model T055CRU1612013J

Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect.
Please check your local and State codes to comply with their requirements for replacement pump motors.
Click here to help answer more questions

ATTENTION: Shipping Restrictions Apply!
 This replacement pump motor does not comply with California's Efficiency Regulations. These regulations can be found in Title 20, in the California Code of Regulations (CCR) sections 1601-1609. To meet California’s requirement, the replacement pump motor must be a variable speed.

Please know your State, Local Laws and Building Codes for replacement pump motors to comply with their regulations.

To comply with current and upcoming regulations we recommend upgrading now to a variable speed motor.
We recommend using Century EVC130 1.30THP Variable Speed Motor

Click here for Inground Variable Speed Pumps
