ASB656 US Motors 1/2 hp 3450 RPM 56C 115/208-230V (ODP) High Efficiency Switchless Pool Pump Motor

ASB656 US Motors 1/2 hp 3450 RPM 56C 115/208-230V (ODP) High Efficiency Switchless Pool Pump Motor

This high-efficiency US Motors pool pump motor is designed to replace standard single-phase motors for swimming pool applications. It features a switchless design and is suitable for direct replacement in compatible 56C frame pump setups.

Key Specifications

• Horsepower: 1/2 HP
• RPM: 3450
• Voltage: 115/208-230V, 60 Hz
• Amperage: 8.6/4.5-4.3 amps
• Enclosure: Open Drip Proof (ODP)

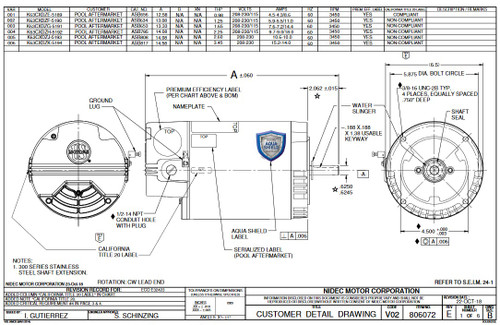

• Frame / Diameter: NEMA 56C frame, 6.5" body diameter
• Shaft Dimensions: 5/8" diameter keyed stainless steel shaft
• Rotation: Non-reversible, counterclockwise (CCW) facing the shaft
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor features a C-face mount with ball bearings and automatic overload protection. It is designed for non-reversible CCW rotation and includes a wiring diagram on the motor nameplate for ease of installation. The motor does not have a base and is intended for direct replacement in pool pump applications requiring a 56C frame.

Please verify local and state regulations before installation, as this motor does not comply with California Title 20 and New York NYSERDA efficiency standards for replacement pool pump motors. Shipping restrictions apply accordingly.

Warranty

1 Year Manufacturer Warranty
