- 3 to 3.45 HP 3450 RPM, 15.2-14.0 amps, 208-230V 60hz. Switchless single phase
- NEMA 56C frame (no base)
- 5/8" diameter KEYED stainless steel shaft
- Overload Protection: Auto. Class B insulation, 6.5" body dia.
- Non-Reversible - CCW Rotation facing the shaft
- C-Face Mount, Ball Bearings, Open Drip Proof (ODP)
Swimming pool pump motor. Sealed ball bearings. Wiring diagram on motor name plate. 1 year warranty.

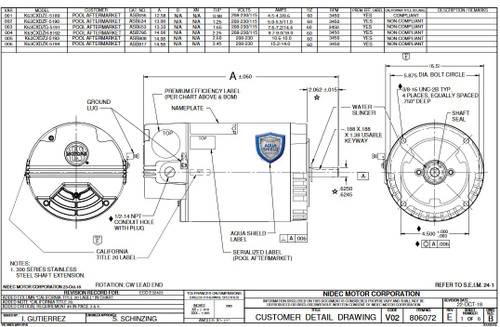

US Motor Model: K063DZK5194023J
ATTENTION: Shipping Restrictions Apply!
California: This replacement pump motor does not comply with California's Efficiency Regulations. These regulations can be found in Title 20, in the California Code of Regulations (CCR) sections 1601-1609. To meet California’s requirement, the replacement pump motor must be a variable speed.
Please know your State, Local Laws and Building Codes for replacement pump motors to comply with their regulations.
