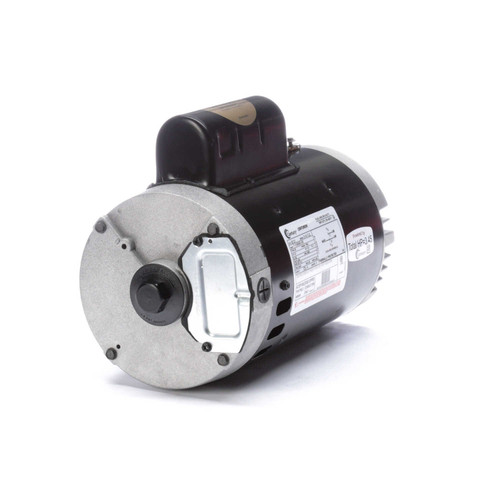

B131 Century 3 hp 3450 RPM 56J Frame 230V Switchless Swimming Pool Pump Motor Century # B131

B131 Century 3 hp 3450 RPM 56J Frame 230V Switchless Swimming Pool Pump Motor

This Century 3 HP swimming pool pump motor is designed to replace standard 56J frame motors commonly used in inground pool pumps such as Hayward Super Pump, Maxflo, and Super II. It provides reliable, high-service-factor performance for pool pump applications requiring a 230V, 3450 RPM motor.

Key Specifications

• Horsepower: 3 HP
• RPM: 3450
• Voltage: 230V
• Amperage: 14.1 amps
• Frame / Diameter: 56J Frame
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Counterclockwise (CCW) facing the shaft
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor features a C-face mount with a round body and no base, equipped with four threaded bolt holes on the face for pump mounting. The bolt holes measure 5 7/8" on center across the shaft. It includes automatic overload protection and a service factor of 1.15. Wiring diagrams are provided on the motor nameplate for easy installation. This motor is non-reversible and designed specifically for swimming pool pump applications.

Please verify local and state regulations regarding pump motor replacements, as this motor does not comply with California Title 20 or New York NYSERDA efficiency standards and may be restricted from shipment to those states.
