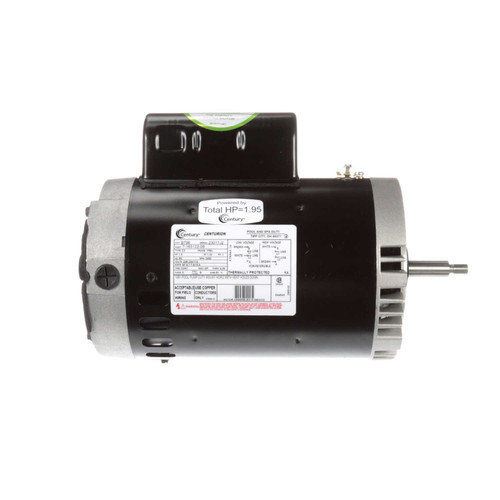

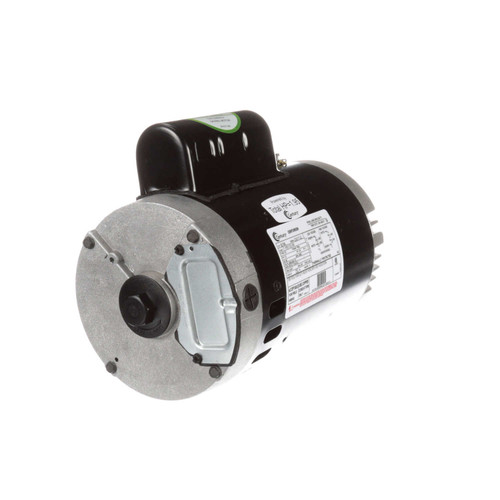

B796 Century 1.5 hp 3450 RPM 56J Frame 115/230V Switchless Swimming Pool Pump Motor Century # B796

B796 Century 1.5 hp 3450 RPM 56J Frame 115/230V Switchless Swimming Pool Pump Motor

The Century B796 is a high-service-factor, energy-efficient swimming pool pump motor designed to replace standard 56J frame motors commonly found on inground pool pumps such as Hayward Super Pump, Maxflo, and Super II. It is ideal for pool pump applications requiring reliable, continuous operation.

Key Specifications

• Horsepower: 1.5 HP
• RPM: 3450
• Voltage: 115/230V, 60 Hz
• Amperage: 15.6/7.8 amps
• Frame / Diameter: 56J Frame
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Counterclockwise (CCW) facing the shaft
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor features a C-face mount with a round body and no base, designed for direct mounting to the pump via four threaded bolt holes spaced 5 7/8" on center across the shaft. It includes automatic overload protection and a service factor of 1.30. The motor is non-reversible with counterclockwise rotation when facing the shaft. Wiring diagrams are available on the motor nameplate for easy installation.

Please note that this motor does not comply with California and New York state energy efficiency regulations for replacement pool motors. Customers are advised to verify local codes and consider upgrading to a variable speed motor for compliance.
