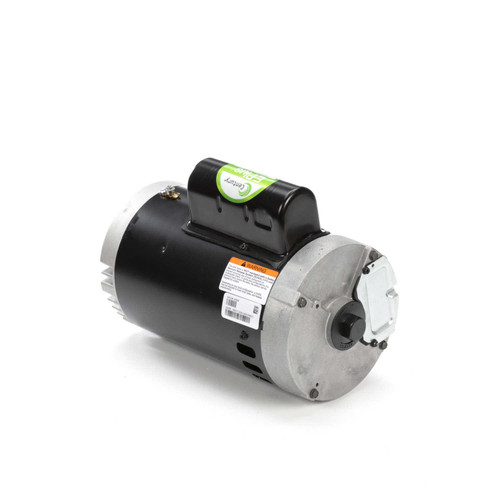

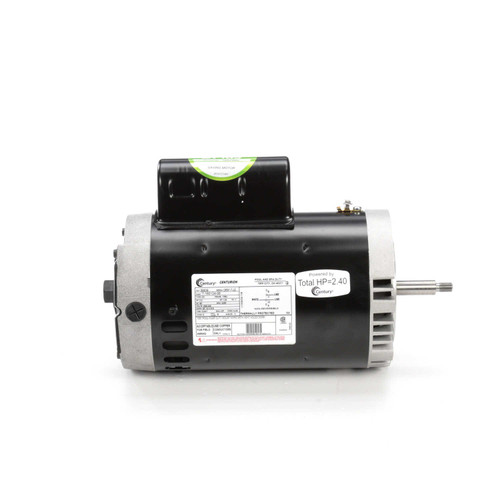

B809 Century 2 hp 3450 RPM 56J Frame 115/230V Switchless Swimming Pool Pump Motor Century # B809

B809 Century 2 hp 3450 RPM 56J Frame 115/230V Switchless Swimming Pool Pump Motor

This Century B809 motor is a 2 HP, 3450 RPM swimming pool pump motor designed to replace motors on inground pool pumps such as Hayward Super Pump, Maxflo, and Super II. It is engineered for reliable pool pump operation with a 56J frame and switchless design.

Key Specifications

• Horsepower: 2 HP
• RPM: 3450
• Voltage: 115/230V (208-230V 60Hz)
• Amperage: 9.6 amps
• Frame / Diameter: 56J Frame
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Counterclockwise (CCW) facing the shaft, non-reversible
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor features a C-face mount with a round body and no base, equipped with four threaded bolt holes spaced 5 7/8" on center across the shaft for secure pump mounting. It includes automatic overload protection with a service factor of 1.20 and is commonly used as a standard 1081 pump duty motor. Wiring diagrams are provided on the motor nameplate for ease of installation.
