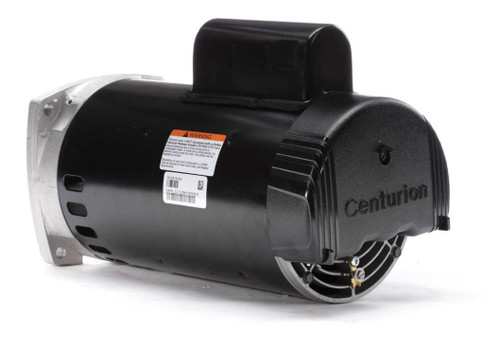

B2844 Century 3 hp 3450 RPM 56Y Frame 208-230V Square Flange Pool Motor Century # B2844

Century B2844 3 HP 3450 RPM 56Y Frame Square Flange Pool Motor

The Century B2844 is a 3 horsepower, 3450 RPM pool motor designed as a direct replacement for Century/AO Smith B844 and US Electric EB844 models. It is commonly used in in-ground pool pumps such as PacFab Challenger, Whisperflo, and Pentair.

Key Specifications

• Horsepower: 3 HP
• RPM: 3450
• Voltage: 208-230V
• Amperage: 15.0 amps
• Enclosure: Open Drip Proof
• Frame / Diameter: 56Y Frame - Square Flange
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Counterclockwise (CCW) facing the shaft
• Bearings: Ball Bearings

Product Features & Fitment

This motor features automatic overload protection with a service factor of 1.15 and a non-reversible CCW rotation. It mounts via a square flange with four non-threaded bolt holes, ensuring compatibility with many popular pool pump models. Please verify local and state energy regulations before purchase, as this motor does not comply with California Title 20 or New York NYSERDA efficiency standards, and shipping restrictions apply accordingly.

Cross Reference

• Century/AO Smith B844, 7-196258-07, 196258
• US Electric Equivalent EB844
• Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect
