B400 Marathon 1/3 hp 1-speed 115V 1800 RPM DPAO 48 Frame (resilient base) Attic Fan Motor

SKU:: B400
UPC:
Weight:: 14.00 LBS
Width:: 7.00 (in)
Height:: 7.00 (in)
Depth:: 12.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115V
Horsepower:: 1/3 HP
RPM:: 1800
Frame:: 48
Hertz:: 60 Hz
Amperage:: 6.6 Amps
Bearings:: Ball Bearings
Speeds:: 1-Speed
Insulation Class:: Class B

Current Stock:

Was: $249.67

Now: $217.12

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

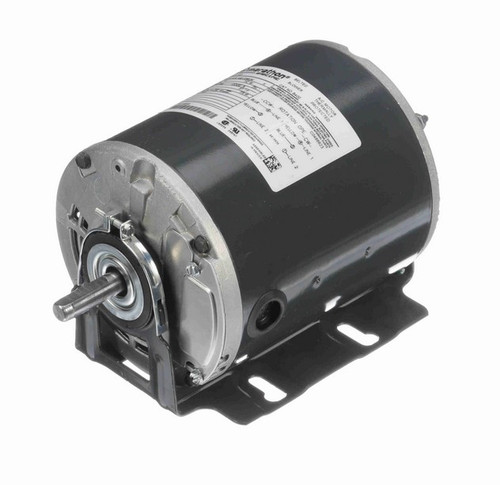

B400 Marathon 1/3 hp 1-speed 115V 1800 RPM DPAO 48 Frame (resilient base) Attic Fan Motor

This Marathon attic fan motor is designed for efficient ventilation of attic spaces, providing reliable intermittent operation. It serves as a direct replacement for motors requiring a drip-proof air-over (DPAO) design and a resilient base mounting.

Key Specifications

Horsepower: 1/3 hp
RPM: 1800
Voltage: 115 V, 60 Hz
Amperage: 6.6 amps
Enclosure: Drip Proof Air-Over (DPAO)
Frame / Diameter: NEMA 48 Frame

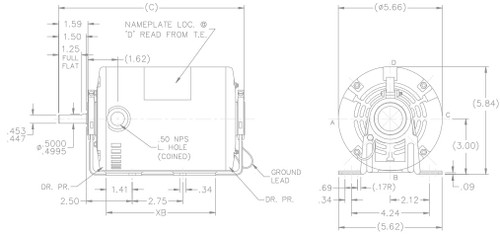

Shaft Dimensions: 1/2" diameter x 1 1/2" length, keyed
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient base for stable mounting and is designed to operate within an air stream for proper cooling. It includes automatic thermal protection and Class B insulation for enhanced durability and safety during operation.
